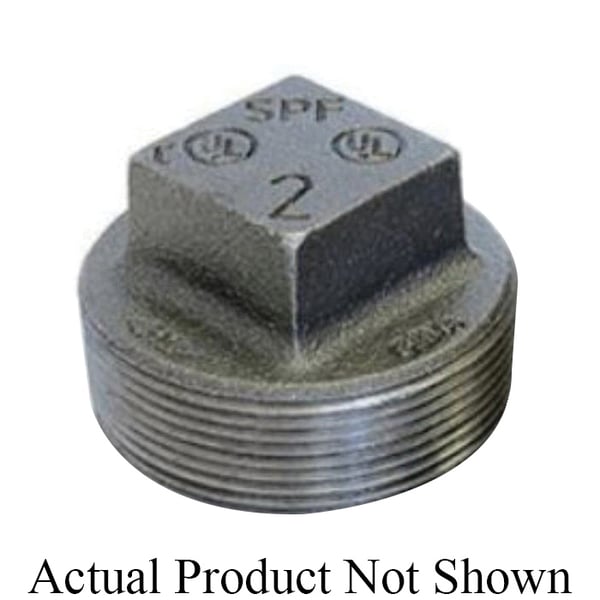

Anvil 0840006068 FIG 3388 Square Head Cored Plug 1-1/4 in Nominal

Product Description

The ANVIL 0840006068 FIG 3388 is a cored plug with a square head. This fitting is a plug with a 1-1/4 in nominal size and NPT end style. Constructed from ductile iron, it is designed for SCH 40/STD schedule applications with a 500 psi pressure rating. It measures 1.36 in H.

• 1-1/4 in nominal size
• NPT end style
• Constructed from ductile iron

Product Highlights

Ductile iron pipe fitting conforming to ASME B16.3 dimensions with threads NPT per ANSI/ASME B1.20.1. UL and ULC listed and FM approved.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0840006068

Technical Specifications

• End Style: NPT
• Fitting/Connector Type: Plug
• Material: Ductile Iron
• Nominal Size: 1-1/4 in
• Pressure Rating: 500 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3388
• Type: Square Head
• Standards and Approvals: ANSI/ASME B1.20.1, ASME B16.14, ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, UL/ULC Listed
