Anvil 0840005631 FIG 3224 Cap, 1-1/2 in Nominal

Product Description

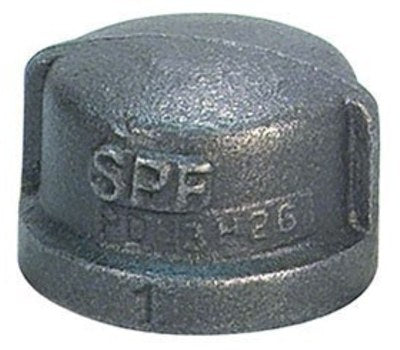

The ANVIL 0840005631 FIG 3224 is a 1-1/2 in nominal cap with a screwed end style. Constructed from ductile iron with a black finish, this fitting conforms to ASME B16.3 dimensions. It is suitable for SCH 40/STD schedule applications with a pressure rating of 500 psi. Threads are NPT per ANSI/ASME B1.20.1.

• Internationally Manufactured Ductile Iron Pipe Fitting.
• Fittings are 100 air tested
• Ductile iron castings conform to ASTM A536

Product Highlights

The ANVIL FIG 3224 cap is UL and ULC listed and FM approved. It is ideal for use in various piping systems requiring a secure and reliable connection.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0840005631
• Country of Origin: United States

Technical Specifications

• End Style: Screwed
• Finish: Black
• Fitting/Connector Type: Cap
• Material: Ductile Iron
• Nominal Size: 1-1/2 in
• Pressure Rating: 500 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3224
• Standards and Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, UL/ULC Listed
• Catalog Number: 0840005631
• Connection Type: Threaded
• Material Grade: 65-45-12
• Maximum Pressure Rating: 500 PSI
• Product Type: Cap
• Selling Size: 1-1/2 in
• Specifications Met: ASME B16.3, ASTM A536, ASME B1.20.1, UL Listed, ULC Listed, FM Approved
