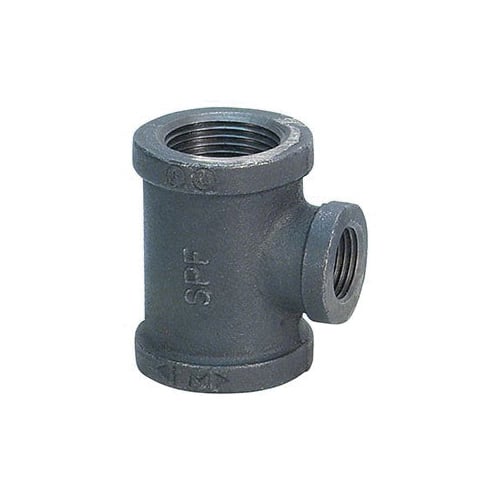

Anvil 0840004220 FIG 3205R Reducing Tee 1 x 1 x 3/4 in Nominal

Product Description

The ANVIL 0840004220 is a FIG 3205R series reducing tee. This tee fitting has a 1 x 1 x 3/4 in nominal size and a screwed end style. Constructed from ductile iron and finished in black, it conforms to ASME B16.3 dimensions and ASME B16.14 for bushings and couplings. The threads are NPT per ANSI/ASME B1.20.1.

• Fitting/Connector: Tee
• Screwed End Style
• Internationally Manufactured Ductile Iron Pipe Fitting.

Product Highlights

The ANVIL reducing tee is made from ductile iron and suitable for various plumbing and piping applications. It is UL and ULC listed and FM approved.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0840004220
• Country of Origin: United States

Technical Specifications

• Series: FIG 3205R
• Fitting/Connector Type: Tee
• Nominal Size: 1 x 1 x 3/4 in
• End Style: Screwed
• Schedule Rating: SCH 40/STD
• Pressure Rating: 500 psi
• Material: Ductile Iron
• Finish: Black
