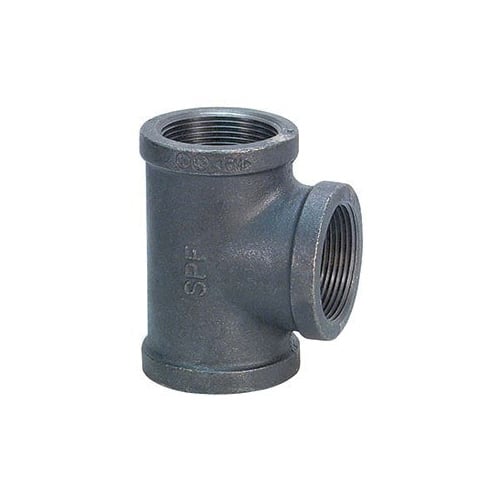

Anvil 0840003164 FIG 3205 Straight Tee, 1 in Nominal

Product Description

The ANVIL 0840003164 is a FIG 3205 straight tee. This tee fitting has a 1 in nominal size and a screwed end style. Constructed from ductile iron, it is designed for SCH 40/STD schedule applications with a pressure rating of 500 psi. SCI ductile iron pipe fittings conform to ASME B16.3 dimensions, while bushings and couplings conform to ASM B16.14. The threads are NPT per ANSI/ASME B1.20.1. Ductile iron is ASTM A536 class 65-45-12. All SCI ductile iron fittings are UL and ULC listed and FM approved.

• Internationally Manufactured Ductile Iron Pipe Fitting.

Product Highlights

The ANVIL 0840003164 straight tee is a durable and reliable fitting for various piping applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0840003164
• Country of Origin: United States

Technical Specifications

• End Style: Screwed
• Finish: Black
• Fitting/Connector Type: Tee
• Material: Ductile Iron
• Nominal Size: 1 in
• Pressure Rating: 500 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3205
