Anvil 0840002141 FIG 3202 45 deg Elbow 1-1/4 in Nominal

Product Description

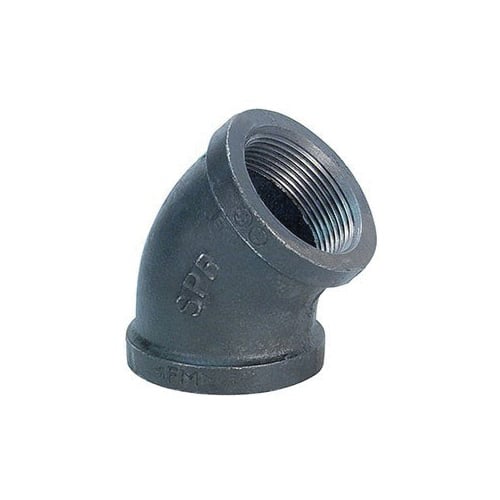

The ANVIL 0840002141 FIG 3202 is a 45-degree elbow fitting with a 1-1/4 inch nominal size and a screwed end style. Constructed from ductile iron and finished in black, this fitting is part of the SCH 40/STD schedule and can withstand a pressure of 500 psi. SCI ductile iron pipe fittings conform to ASME B16.3 dimensions and threads are NPT per ANSI/ASME B1.20.1.

• Fitting/Connector: 45 deg Elbow
• Nominal Size: 1-1/4 in
• Material: Ductile Iron

Product Highlights

Ductile iron pipe fitting with screwed end style, conforming to ASME standards. UL and ULC listed and FM approved.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0840002141
• Country of Origin: United States

Technical Specifications

• Series: FIG 3202
• Fitting/Connector Type: 45 deg Elbow
• Nominal Size: 1-1/4 in
• End Style: Screwed
• Schedule Rating: SCH 40/STD
• Pressure Rating: 500 psi
• Material: Ductile Iron
• Finish: Black
