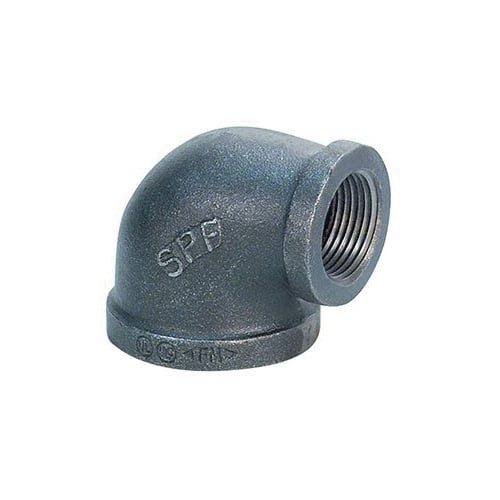

Anvil 0840001077 FIG 3201R 90 deg Reducing Elbow 1-1/4 x 1 in

Product Description

The ANVIL 0840001077 is a FIG 3201R series reducing elbow. This 90-degree elbow fitting has a 1-1/4 x 1 in nominal size and a screwed end style. Constructed from ductile iron with a black finish, it is designed for SCH 40/STD schedule with a 500 psi pressure rating. SCI ductile iron pipe fittings conform to ASME B16.3 dimensions.

• Internationally Manufactured Ductile Iron Pipe Fitting.
• 90 deg Elbow fitting/connector
• Threads are NPT per ANSI/ASME B1.20.1

Product Highlights

The ANVIL 0840001077 reducing elbow is UL and ULC listed and FM approved. Suitable for various piping applications requiring a durable and reliable connection.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0840001077
• Country of Origin: United States

Technical Specifications

• Series: FIG 3201R
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1-1/4 x 1 in
• End Style: Screwed
• Schedule Rating: SCH 40/STD
• Pressure Rating: 500 psi
• Material: Ductile Iron
• Finish: Black
• Standards and Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, UL/ULC Listed
