Anvil 0840001044 FIG 3201R 90 deg Reducing Elbow 1 x 3/4 in

Product Description

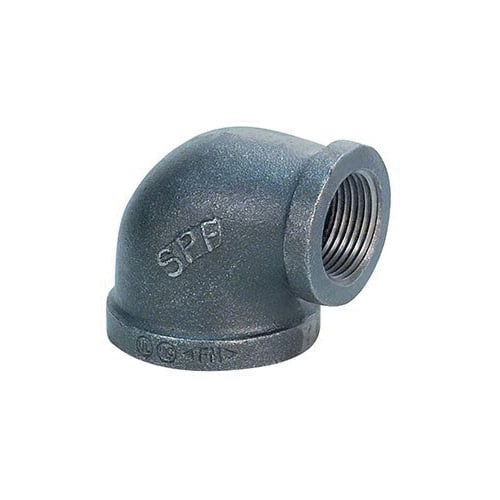

The ANVIL 0840001044 is a FIG 3201R series reducing elbow. This 90-degree elbow fitting has a 1 x 3/4 in nominal size and a screwed end style. Constructed from ductile iron with a black finish, it is designed for SCH 40/STD schedule applications with a pressure rating of 500 psi.

• Internationally Manufactured Ductile Iron Pipe Fitting.
• 90 deg elbow fitting/connector
• Screwed end style

Product Highlights

The ANVIL 0840001044 reducing elbow is made from ductile iron and conforms to ASME B16.3 dimensions. Threads are NPT per ANSI/ASME B1.20.1.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0840001044
• Country of Origin: United States

Technical Specifications

• End Style: Screwed
• Finish: Black
• Fitting/Connector Type: 90 deg Elbow
• Material: Ductile Iron
• Nominal Size: 1 x 3/4 in
• Pressure Rating: 500 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3201R
• Standards and Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A536 Grade 65-45-12, cULus Listed, FM Approved, UL/ULC Listed
