Anvil 0831035605 1-1/2 in x 9 in

Product Description

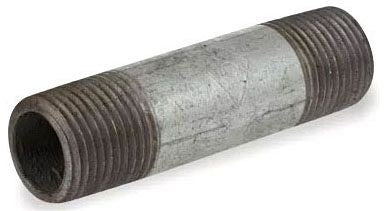

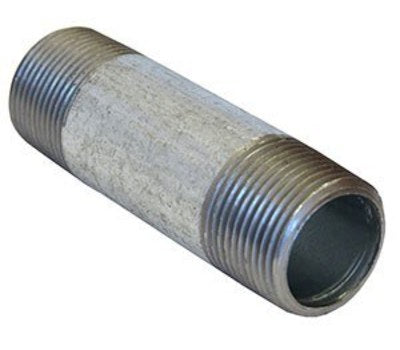

The ANVIL 0831035605 is a 1-1/2 inch nominal diameter by 9 inch long import galvanized steel pipe nipple designed for use in low- to medium-pressure piping systems. It features male NPT threads on both ends and is hot-dip galvanized for corrosion resistance in indoor or outdoor environments. This fitting is commonly used in water, air, and non-potable fluid lines where strong, rust-resistant connections are required.

• 1-1/2 in. nominal diameter
• 9 in. overall length
• Import galvanized steel construction

Product Highlights

The ANVIL 0831035605 pipe nipple is suitable for low to medium pressure piping systems. Constructed from galvanized steel with male NPT threads.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0831035605

Technical Specifications

• Domestic Or Import: Import
• Fitting Material: Galvanized Steel
• Fitting Size: 1-1/2 in X 9 in
• Length: 9 in
• Material: Steel
• Finish: Galvanized
• Height: 1.9 in
• Width: 1.9 in
• End Conn Size 1: MPT
• Catalog Number: 0831035605
• Product Type: Straight
• Schedule/Class: Schedule 40
• Selling Length: 9 in
• Size: 1-1/2 x 9 in
• UPC: 690291292408
• Manufacturer: Anvil
• Thread Size: NPT 1-1/2
• Operating Pressure: 150 PSI (10 bar)
• Type: Pipe Nipple
• Connection Method: Threaded
