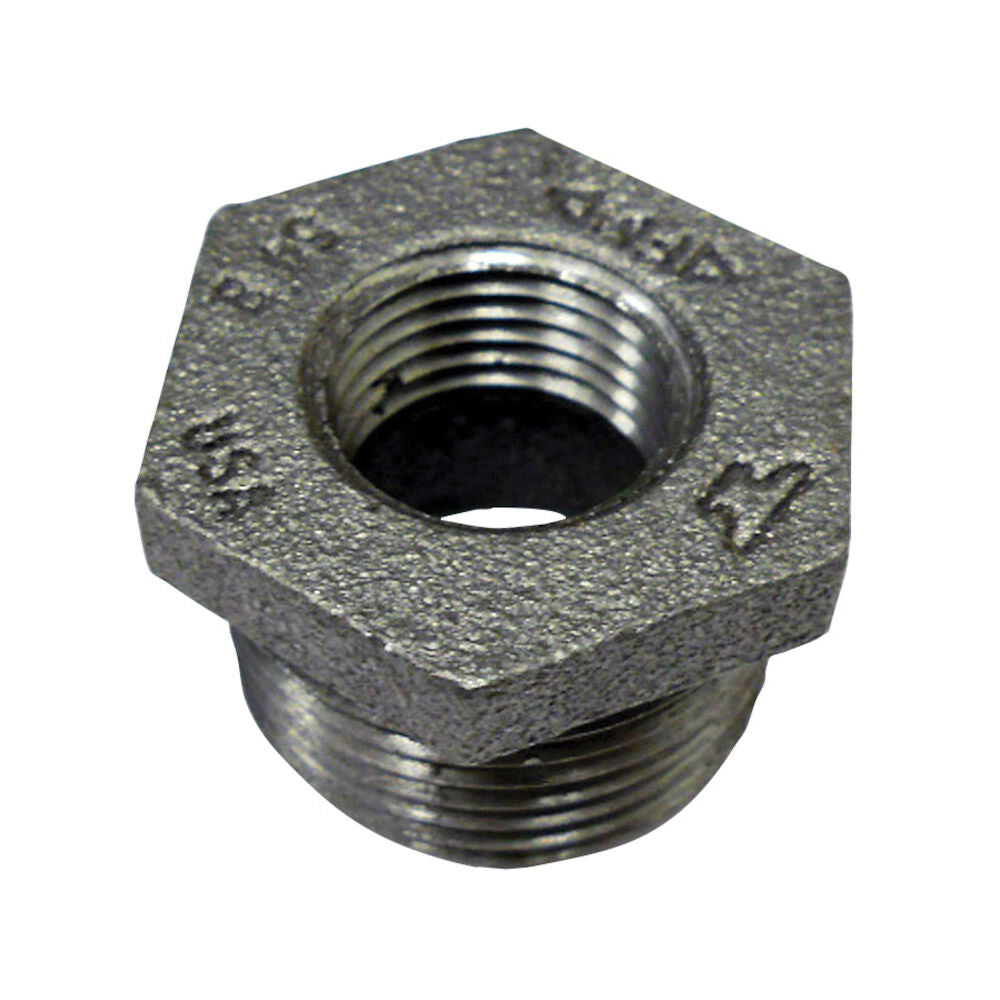

Anvil 0819907288 FIG 3383 Hex Head Pipe Bushing 1-1/4x1/4 inches

Product Description

The Anvil 0819907288 FIG 3383 is a malleable iron pipe fitting conforming to ASME B16.3 dimensions and pressure ratings. This hex head bushing is tested for through wall porosity using an air under water process. It is UL Listed and FM Approved.

• Fitting/Connector Type: Bushing
• Nominal Size: 1-1/4x1/4 in
• End Style: MNPT x FNPT

Product Highlights

This galvanized malleable iron hex head pipe bushing is suitable for use in various plumbing and industrial applications. It has a pressure rating of 175 psi.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0819907288

Technical Specifications

• End Style: MNPT x FNPT
• Finish: Galvanized
• Fitting / Connector Type: Bushing
• Material: Malleable Iron
• Nominal Size: 1-1/4 x 1/4 in
• Pressure Class: 150 Lb
• Hex Size: 1.12 in
• Manufacturer: Anvil International
• Manufacturer #: 0819907288
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3383
• Type: Hex Head
