Anvil 0818906646 Imported Malleable Iron Hex Bushing 1 inches x 5/8 inches

Product Description

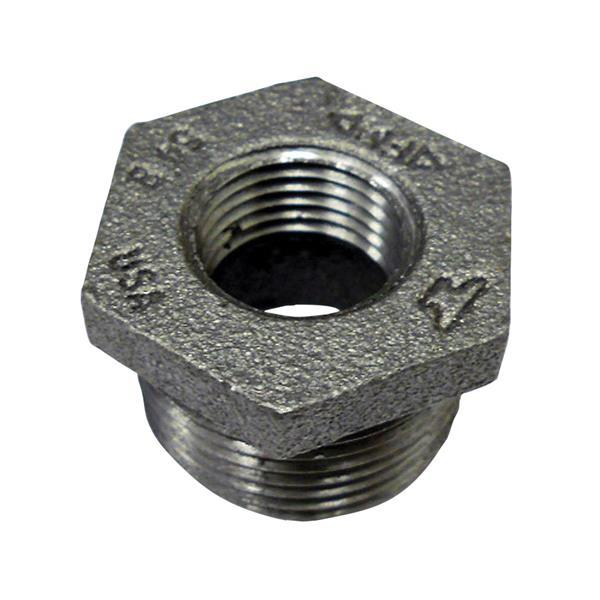

The Anvil 0818906646 is an imported malleable iron hex bushing. This fitting conforms to ASME B16.3 dimensions and pressure ratings. It is tested for through wall porosity using an air under water process. This class 150 pipe fitting is UL Listed and FM Approved.

• Internationally Manufactured Malleable Iron Pipe Fitting.
• Fitting Size: 1 in X 3/4 in
• Tested for through wall porosity

Product Highlights

The Anvil 0818906646 is ideal for use in plumbing and pipe fitting applications. It is made from durable malleable iron and is UL Listed and FM Approved.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0818906646

Technical Specifications

• Type: Standard Hex Head
• Nominal Size: 1 x 3/4 in
• End Style: MNPT x FNPT
• Material: Malleable Iron
• Brand: SPF/Anvil
• Fitting/Connector Type: Bushing
• Pressure Class: 150 lb
• Pressure Rating: 175 psi
• Series: FIG 3383
• Temperature Rating: -20 deg F
• Import Or Domestic: Import
