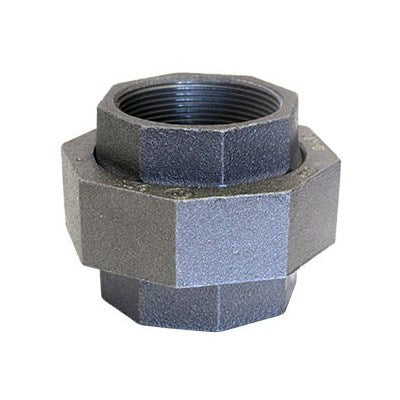

Anvil 0813509205 FIG 3463 Ground Joint Pipe Union 2 inches

Product Description

The ANVIL 0813509205 FIG 3463 is a 2" ground joint pipe union. This fitting conforms to ASME B16.3 dimensions and pressure ratings and ASME B16.39. It is tested for through wall porosity using an air under water process. Suitable for use as a connector in various piping systems.

• 2 in nominal size
• FNPT end style
• Constructed from galvanized malleable iron

Product Highlights

The Anvil FIG 3463 ground joint pipe union features a galvanized finish and is suitable for use in a variety of applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0813509205
• Country of Origin: Import

Technical Specifications

• End Style: FNPT
• Finish: Galvanized
• Fitting / Connector Type: Union
• Material: Malleable Iron
• Nominal Size: 2 in
• Pressure Class: 150 Lb
• Length: 2-3/4 in
• Manufacturer: Anvil International
• Manufacturer #: 0813509205
• Pressure Rating: 175 psi
• Series: FIG 3463
• Temperature Rating: -20 deg F
• Type: Ground Joint
• MPN: 0813509205
• Connection: FPT x FPT
• Class: Class 150
• Body Material: Hot Dip Galvanized Malleable Iron
• Seat Material: Brass
• Fitting: Union
