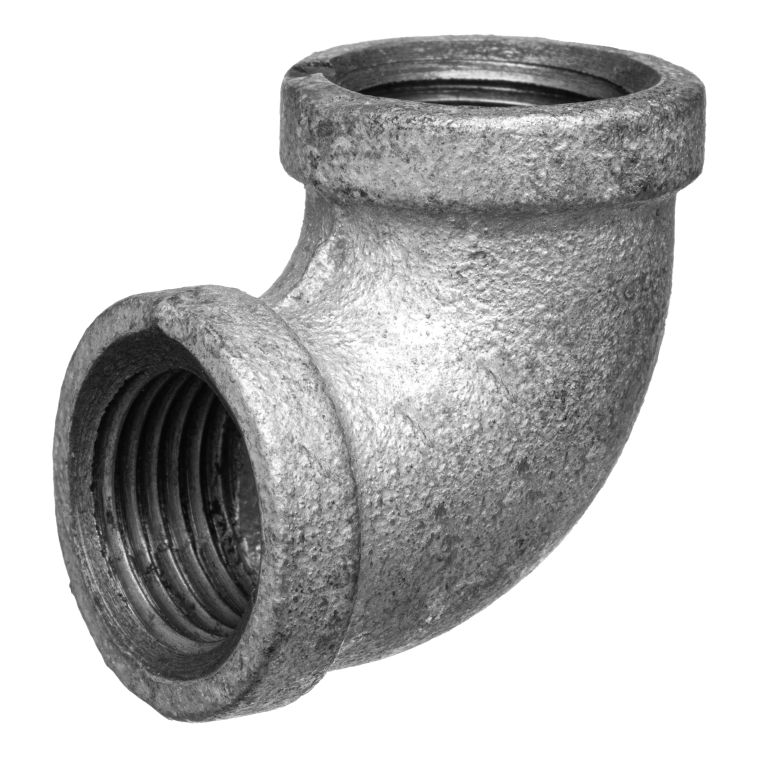

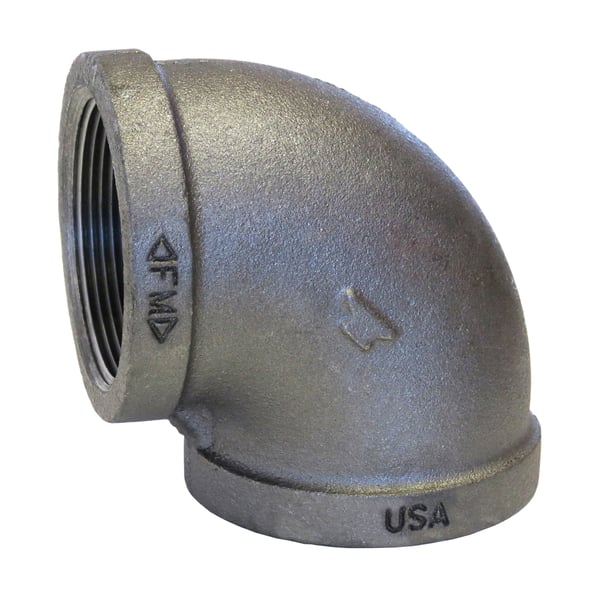

Anvil 0811002211 fig 3101 90 deg pipe elbow 3 in nominal

Product Description

The ANVIL 0811002211 FIG 3101 is a 90-degree pipe elbow designed for connecting pipes at a 90-degree angle. Constructed from malleable iron with a galvanized finish, this fitting is suitable for various plumbing and industrial applications. It features a 3-inch nominal size and FNPT end style, with a pressure rating of 150 lb.

• Constructed from malleable iron with a galvanized finish
• Features a 90-degree elbow design for changing pipe direction
• Suitable for use in plumbing and industrial applications

Product Highlights

The ANVIL 0811002211 is a durable and reliable pipe fitting for creating 90-degree connections in piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0811002211
• Country of Origin: Import

Technical Specifications

• End Style: FNPT
• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Material: Malleable Iron
• Nominal Size: 3 in
• Pressure Class: 150 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 3101
• Temperature Rating: -20 deg F
• MPN: 0811002211
• Brand: ANVIL
• UOM: EA
• Connection (A): 3" NPT Female
• Connection (B): 3" NPT Female
• Pipe Size: 3"
• Shape: 90 Degree Elbow
• Specifications Met: ASME B1.20.1, ASME B16.3, ASTM A197, UL Listed
• Style: Elbow
• Thread Type: NPT
• Working Pressure: 150 psi
• Manufacturer: Anvil
• Mounting Type: Free Hanging (In-Line)
• Thread Size: NPT 3
• Type: Elbow Fitting
• Connection Method: Threaded
• Moisture Sensitivity Level (MSL): Not Applicable
• ECCN: EAR99
• Manufacturer Standard Package: 1
