Anvil 0810086611 Reducing Coupling 3/4 x 1/8 Inch FNPT x FNPT

Product Description

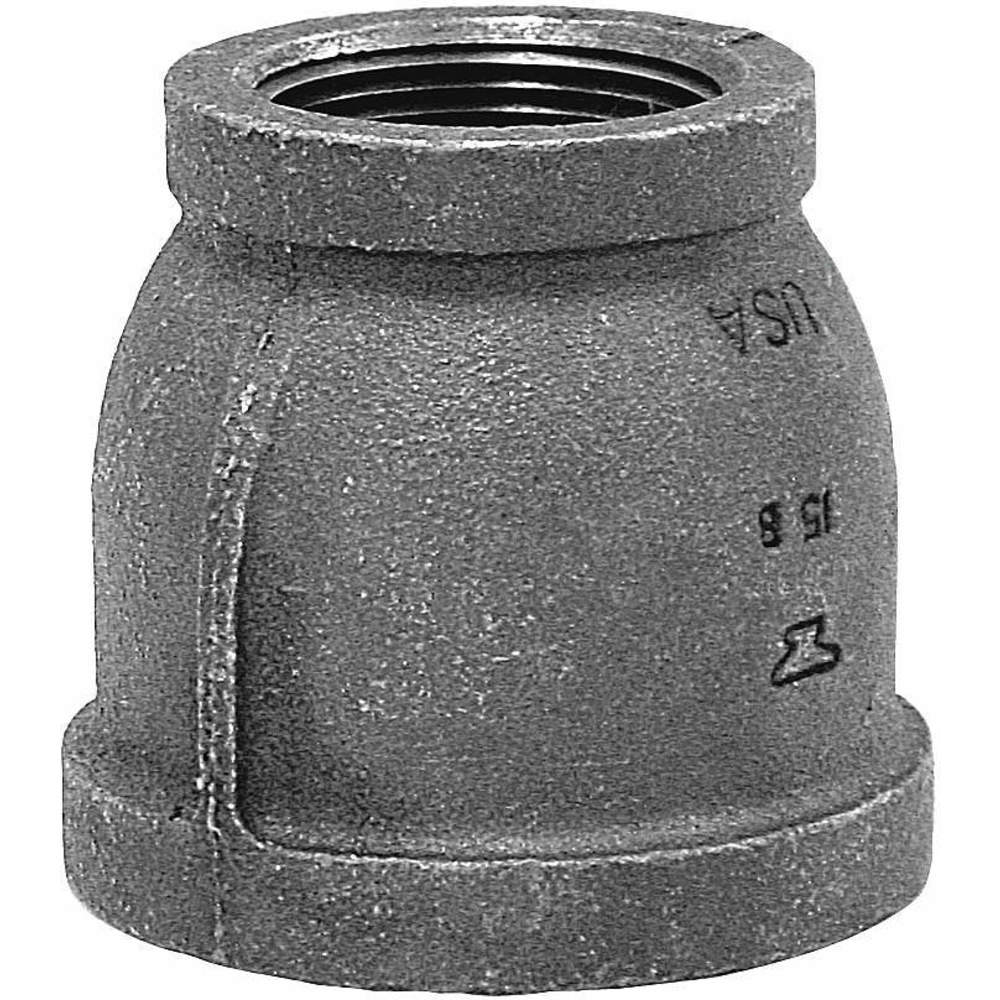

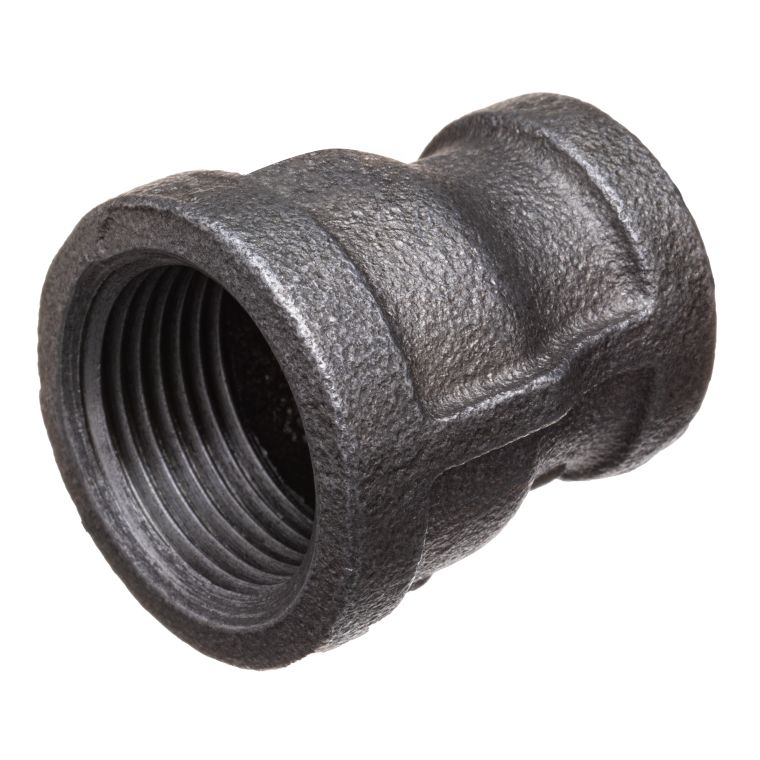

The ANVIL 0810086611 reducing coupling is made from malleable iron with 3/4 x 1/8 inch fitting pipe size and FNPT x FNPT connection type. Suitable for use with air, natural gas, non-potable water, oil, and steam applications. It conforms to ASME B16.3 and ASTM A197 standards.

• Constructed from malleable iron for durability
• Suitable for various applications including air, natural gas, and steam
• Complies with ASME B16.3 and ASTM A197 standards

Product Highlights

The ANVIL reducing coupling ensures secure connections in diverse piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0810086611
• Country of Origin: US

Technical Specifications

• Item: Reducer Coupling
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Basic Fitting Shape: Reducer Coupling
• Body Material: Malleable Iron
• Class: Class 150
• Connection Type: FNPT
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 3/4"
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1/8"
• Fitting Side B Type: NPT
• For Pipe Schedule: 40
• Includes Pre-applied Thread Sealant: No
• Includes Seal: No
• Max. Pressure: 300 psi @ 150 0 B0F
• Maximum Operating Pressure: 300 psi @ 150 0 B0F
• Pipe Fitting Material: Malleable Iron
• Pipe Size: 3/4" x 1/8"
• Specific Fitting Shape: Reducing Coupling
• Standards: Asme B16.3, Astm A197, Fm Approved, Ul Listed
• Temp. Range: -20 0 B0F to +150 0 B0F
• Brand Name: Anvil Smith Cooper
• Brand Part Number: 0810086611
• Connection (A): 3/4" NPT Female
• Connection (B): 1/8" NPT Female
• Material: Iron (Black-Coated)
• Pressure Class: Class 150
• Shape: Straight
• Specifications Met: ASME B1.20.1, ASME B16.3, UL Listed
• Style: Reducing Coupling
• Thread Type: NPT
• Working Pressure: 150 psi
