Anvil 0800004350 Cast Iron Reducing Tee 1 1/4 x 1 1/4 x 1/2

Product Description

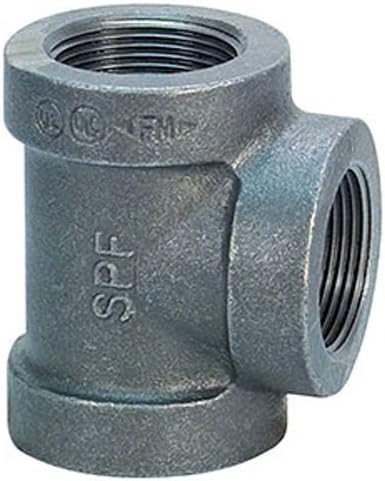

Anvil 0800004350 is a cast iron reducing tee intended for screwed pipe connections in plumbing and industrial piping systems. The nominal size is 1 1/4 x 1 1/4 x 1/2 inches, conforming to Schedule 40 (STD) and FIG 3358R series with a 300 psi pressure rating. Threads meet NPT per ANSI/ASME B1.20.1 and castings conform to ASTM A126 and ANSI B16.4 Class 125; the item is UL listed and FM approved.

• Cast iron reducing tee with screwed (threaded) ends for pipe connections
• Nominal size 1 1/4 x 1 1/4 x 1/2 inches; Schedule 40 (STD); 300 psi pressure rating
• Meets ASTM A126 and ANSI B16.4 Class 125; threads NPT per ANSI/ASME B1.20.1; UL listed and FM approved

Product Highlights

Cast iron reducing tee, 1 1/4 x 1 1/4 x 1/2 in, screwed NPT ends, 300 psi, FIG 3358R

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0800004350
• Country of Origin: US

Technical Specifications

• Brand: Anvil
• Manufacturer: Anvil International
• Manufacturer Part Number: 0800004350
• Model: 0800004350
• Item Code: BT9XPC
• Product Type: Reducing tee
• Fitting Type: Tee
• End Style: Screwed (NPT threads)
• Material: Cast iron
• Nominal Size: 1 1/4 x 1 1/4 x 1/2 inches
• Pressure Rating: 300 psi
• Schedule Rating: Schedule 40 (STD)
• Series: FIG 3358R
• Standards: ASTM A126; ANSI B16.4 Class 125
• Thread Standard: NPT per ANSI/ASME B1.20.1
• Certifications: UL listed; FM approved
• Country of Origin: US
• Weight (manufacturer listed): 0.612 kg
