Anvil 0800004269 Cast Iron Threaded Tee (1 x 1 x 1/2)

Product Description

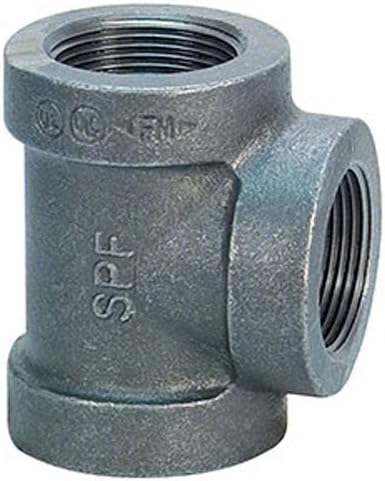

Anvil 0800004269 is a cast iron threaded tee (reducer tee) sized 1 x 1 x 1/2 inch for pipe systems. The fitting provides NPT screwed connections and is manufactured to ASTM A126 with pipe dimensions per ANSI B16.4 Class 125. Threads conform to ANSI/ASME B1.20.1. It is UL listed and FM approved and is rated to 300 psi for plumbing, fire protection, and general piping applications.

• Cast iron threaded (screwed) tee, nominal size 1 x 1 x 1/2 inch
• NPT threads per ANSI/ASME B1.20.1; manufactured to ASTM A126; dimensions per ANSI B16.4 Class 125
• UL listed and FM approved; pressure rating 300 psi; item/model BT9XNV

Product Highlights

Threaded cast iron reducer tee for 1 x 1 x 1/2 inch pipes; NPT threads; UL and FM certified; 300 psi rating

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0800004269
• Country of Origin: US

Technical Specifications

• Brand: Anvil International
• Manufacturer Part Number: 0800004269
• Model Number: 0800004269
• Item: BT9XNV
• Product Type: Threaded tee (reducer tee)
• Material: Cast iron
• Nominal Size: 1 x 1 x 1/2 inch
• Threads: NPT per ANSI/ASME B1.20.1
• Standards: ASTM A126; ANSI B16.4 Class 125
• Certifications: UL listed; FM approved
• Pressure Rating: 300 psi
• Finish: Black oxide (on some variants)
• Unit Count: 1
• Country of Origin: US
