Anvil 0800000028 Cast Iron Elbow (1 1/2 Inch / 90 Degree)

Product Description

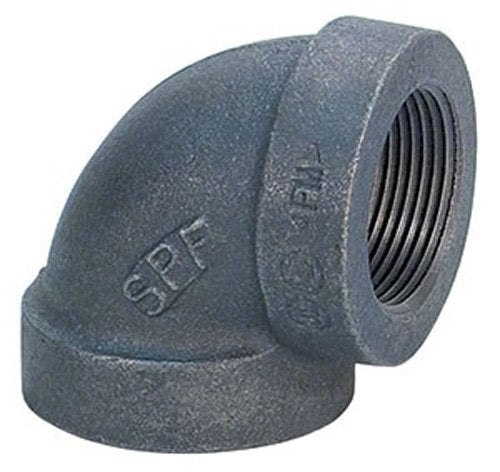

The Anvil 0800000028 is a cast iron 90-degree screwed elbow for 1 1/2 inch nominal pipe. It is part of the FIG 3351 series, Schedule 40 (STD) rated, and pressure rated to 300 psi. Fitting dimensions conform to ANSI B16.4 Class 125 and threads are NPT per ANSI/ASME B1.20.1. The fitting meets ASTM A126 and is UL Listed and FM Approved for plumbing and piping systems. It provides a threaded directional change in black pipe installations.

• Cast iron 90-degree elbow with screwed end style for threaded connections
• Nominal size 1 1/2 inch, Schedule 40 (STD), pressure rated to 300 psi
• Conforms to ASTM A126; dimensions per ANSI B16.4 Class 125; NPT threads per ANSI/ASME B1.20.1; UL Listed and FM Approved

Product Highlights

Cast iron 90-degree screwed elbow, 1 1/2 inch nominal, Schedule 40 (STD), 300 psi, FIG 3351 series

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0800000028
• Country of Origin: US

Technical Specifications

• Brand: Anvil
• Manufacturer Part Number: 0800000028
• Model: 0800000028
• Series: FIG 3351 Series
• Item Code: BT9XKH
• Material: Cast Iron
• Fitting Type: Elbow
• Fitting Angle: 90 degree
• Nominal Size: 1 1/2 inch
• End Style: Screwed
• Schedule Rating: Schedule 40 (STD)
• Pressure Rating: 300 psi
• Standards: Conforms to ASTM A126; dimensions conform to ANSI B16.4 Class 125
• Threads: NPT per ANSI/ASME B1.20.1
• Listings: UL Listed and FM Approved
• Country Of Origin: US
