Anvil 0560500241 Extension Split Pipe Clamp Zinc Plated 2 ea

Product Description

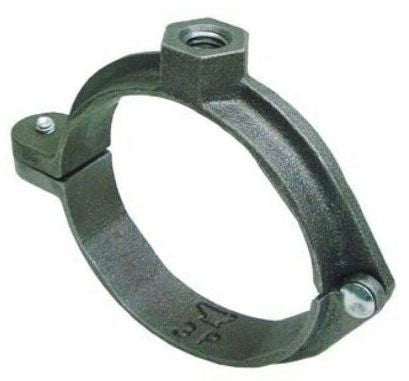

The Anvil 0560500241 is a two-piece extension split pipe clamp designed for efficient installation. This clamp is made of malleable iron and has a pipe size of two inches. It is suitable for non-insulated stationary pipe lines, ensuring secure and stable connections.

• Load rating up to 180 pounds
• Temperature rating of four hundred fifty degrees Fahrenheit
• Designed to minimize moisture entrapment

Product Highlights

This clamp features a hinged design that allows for rapid installation with a single closure screw. It is particularly effective when used with a nipple, making it suitable for refrigeration or compressor piping that may be subject to vibration.

Product Information

Standard Information

• Manufacturer: Anvil
• Model: 138R

Technical Specifications

• Rod Size: three-eighths inch
• Number of Screws/Bolts: 2
• Finish: zinc plated
• Applicable Standards: Federal Specification A-A-1192A Type 12, WW-H-171-E Type 25, ANSI/MSS SP-69 and MSS SP-58 Type 12
• UPC: 690291608438
