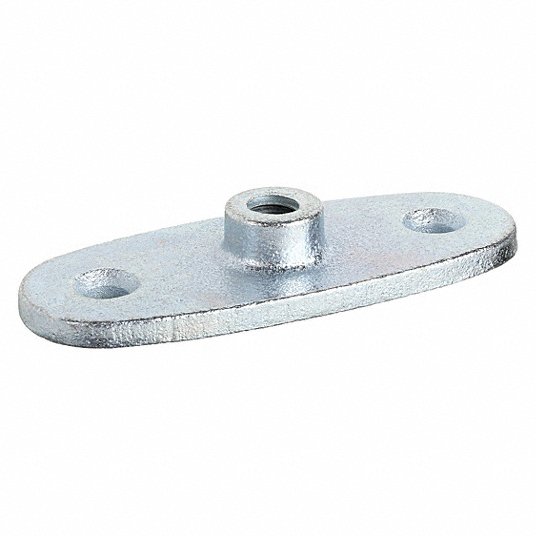

Anvil 0560317208 Ceiling Flange 3/8 inches x 3/8 inches, Flanged x FPT, 3-5/16 inches OD

Product Description

The ANVIL 0560317208 ceiling flange is designed for plumbing, mechanical, HVAC, industrial, fire protection, mining, oil, and gas applications. It features flanged x female threaded end connections and is made from malleable iron with an electroplated zinc finish. It supports a load rating of 180 pounds.

• Nominal pipe size 3/8 Inch x 3/8 Inch
• Flange outside diameter 3-5/16 Inch
• Made from malleable iron

Product Highlights

The ANVIL ceiling flange is suitable for attachment to wood beams or ceilings. It meets ASME and ASTM standards and is UL Listed, FM Approved, and IAPMO Certified.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0560317208
• Country of Origin: CN

Technical Specifications

• Type: Rod Threaded, PHD #941, Ceiling, Wall
• Nominal Pipe Size: 3/8 Inch x 3/8 Inch
• Flange Outside Diameter: 3-5/16 Inch
• Thickness: 3/16 Inch
• End Connection: Flanged x Female Threaded
• Material: Malleable Iron, Steel
• Material Specification: ASTM B633
• Finish: Electroplated Zinc, Galvanized
• Application: Plumbing, Mechanical, HVAC, Industrial, Fire Protection to Mining, Oil and Gas, For attachment to wood beams/ceiling
• ProductID: 9146
• PC SELECT GROUP: 104520
• PC TSID: D007F001R0000041
• Finish REF: Electroplated Zinc
• Manufacturer Part Number Additional: 128R-GALV_3/8
• PC CLASSSTATUS: 1
• Series/Model: 128R
• Group: Pipe, Valves & Fittings
• Vendor: Anvil Int'l
• Category: Pipe & Fitting Accessories
• Product UPC: 69029100799
• Model Number: 0560317208
• Product Type: Ceiling Flange
• Product Category: PVF
• Manufacturer Name: ANVIL, ASC Engineered Solutions
• Thread Size: 3/8 in
• Load Capacity: 180 lb
• Item Name: Ceiling Flange
• Connection Type: FNPT
• Set Screw Size: #12
• Color/Finish: Electro-Galvanized
• Schedule: SCH 40
• Center To Center End Hole: 2-1/4 Inch
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 150 deg F
• Maximum Load: 180 lb
• For Threaded Rod Size: 3/8"
• For Use With: Ceiling, Wood Beams
• Length: 3.312"
• Max. Load: 180 lbs.
• Metal Detectable: Yes
• Mounting Location: Ceiling
• Overall Height: 1/2"
• Overall Length: 3.31"
• Overall Width: 1.38"
• Plate Material: Galvanized Steel
• Width: 1 3/8"
