Anvil 0560018939 1-1/4 Pipe Hanger Copper Colored Epoxy

Product Description

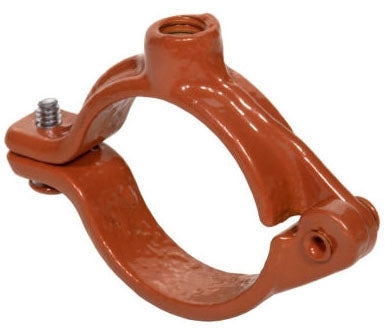

The Anvil 0560018939 is a pipe hanger designed for secure support. This hinged pipe hanger holds pipes with a diameter of one and one-fourth inches. It features a single closure screw and an extension split ring for added stability.

• Load capacity of 180 pounds
• Constructed from malleable iron for durability
• Copper colored epoxy finish

Product Highlights

This product is ideal for non-insulated stationary copper tubing. Its design allows for economical installation while providing a tight fit.

Product Information

Standard Information

• Manufacturer: Anvil
• Material: Malleable Iron

Technical Specifications

• Minimum Pipe Size: 1-1/4 Inch
• Maximum Pipe Size: 1-1/4 Inch
• Hanger Mounting Size: 3/8 Inch (Rod)
• Load Rating: 180 Pounds
• Length: 2-7/8 Inch
• Thickness: 3/4 Inch
• Applicable Standards: Federal Specification A-A-1192A, WW-H-171-E, ANSI/MSS-SP-69, MSS-SP-58
