Product Description

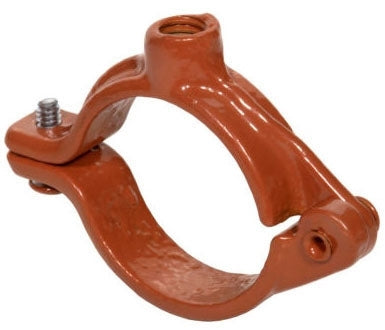

The Anvil 0560018913 is a reliable pipe hanger designed for non-insulated stationary copper tube applications. This hinged design allows for easy installation and provides a tight fit on copper tubing.
- Load rating up to 180 pounds.
- Constructed from malleable iron with a copper colored epoxy finish.
- Hanger mounting size is three eighths inch for rod.
Product Highlights
This pipe hanger is specified for use with minimum and maximum pipe sizes of three fourths inch.
Product Information
Standard Information
-
Manufacturer: Anvil
-
Model Number: CT-138R
Technical Specifications
-
Type: Hinged, Single Closure Screw, Rod Threaded, Extension Split Ring
-
Material: Malleable Iron
-
Finish: Copper Colored Epoxy
-
Load Rating: 180 Pound
-
Length: 2.25 Inches
-
Thickness: 0.75 Inches
-
Applicable Standard: Federal Specification A-A-1192A, WW-H-171-E, ANSI/MSS-SP-69, MSS-SP-58
