Anvil 0560018905 Pipe Hanger 180 Lb (1/2) Replacement MPN

Product Description

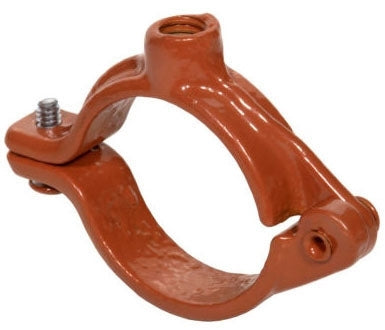

The Anvil 0560018905 is a pipe hanger designed for use in plumbing installations. It is built with durability in mind, made from malleable iron and coated with copper colored epoxy. This hanger is suitable for non-insulated stationary copper tubes and can support a maximum load of 180 pounds.

• For 1/2 inch pipes
• Designed for easy installation
• Meets multiple federal specifications

Product Highlights

Hinged design allows for economical installation and provides a tight fit on copper tubing.

Product Information

Standard Information

• Manufacturer: Anvil
• UPC: 690291537110

Technical Specifications

• Type: Hinged, Single Closure Screw, Rod Threaded, Extension Split Ring
• Material: Malleable Iron
• Finish: Copper Colored Epoxy
• Load Rating: 180 Pounds
• Maximum Pipe Size: 1/2 Inch
• Minimum Pipe Size: 1/2 Inch
• Hanger Mounting Size: 3/8 Inch (Rod)
• Length: 2 Inches
• Thickness: 3/4 Inch
• Applicable Standard: Federal Specification A-A-1192A, WW-H-171-E, ANSI/MSS-SP-69, MSS-SP-58
