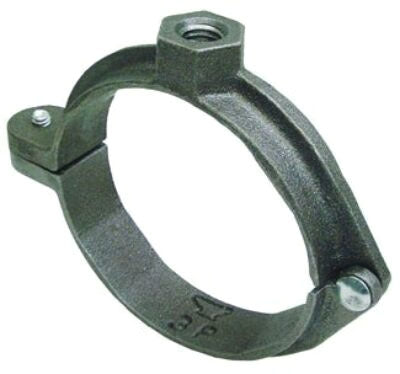

Anvil 0560018822 Split Pipe Clamp Black 3/4 Inch

Product Description

The Anvil 0560018822 is a split pipe clamp designed for 3/4 inch pipes. It is made from malleable iron and features a two-piece construction. This clamp includes two screws for secure fastening and provides robust support for non-insulated stationary pipe lines.

• Load rating of 180 pounds.
• Temperature rating of four hundred fifty degrees Fahrenheit.
• Rapid installation due to hinged design and single screw closure.

Product Highlights

This clamp is suitable for refrigeration or compressor piping applications that experience vibration. It ensures a solid grip on the pipe and prevents moisture entrapment.

Product Information

Standard Information

• Manufacturer: Anvil
• UPC: 69029115936

Technical Specifications

• MPN: 0560018822
• Model: 138R
• Pipe Size: 3/4 inch
• Rod Size: 3/8 inch
• Load Rating: 180 pounds
• Temperature Rating: 450 degrees Fahrenheit
• Applicable Standards: Federal Specification A-A-1192A Type 12, WW-H-171-E Type 25, ANSI/MSS SP-69, MSS SP-58 Type 12
