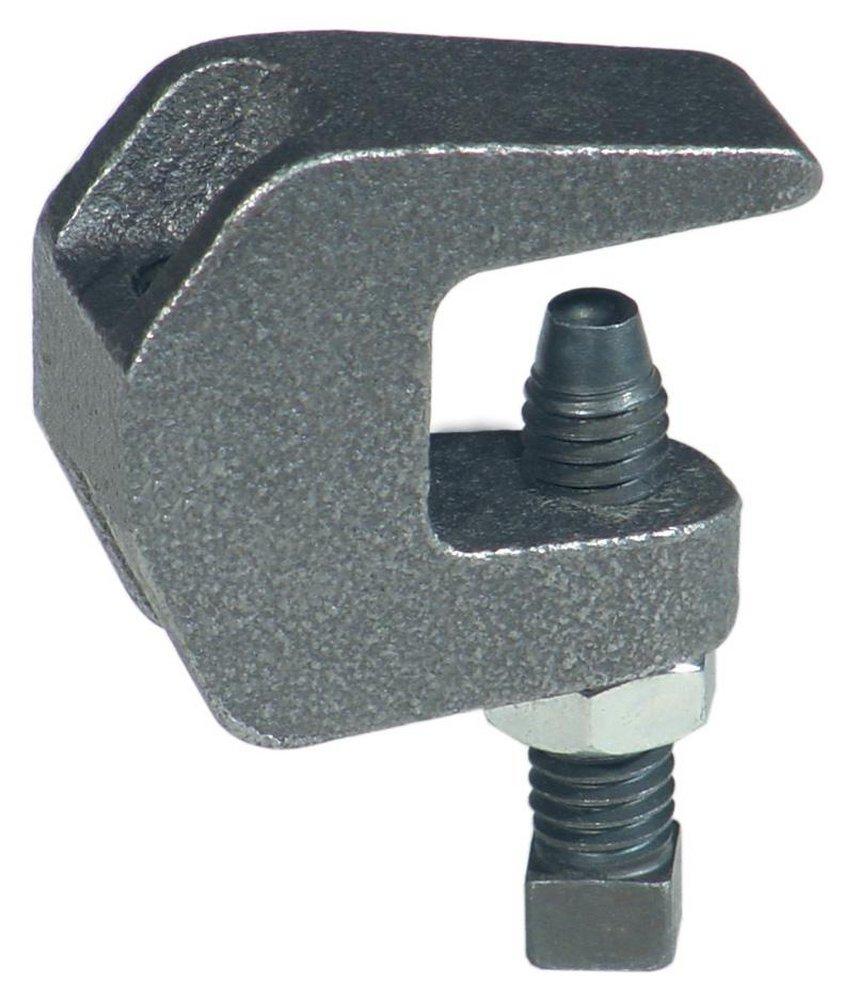

Anvil 0560009078 Fig 92 3/4 In. Plain Ductile Iron C-Clamp Beam Clamp

Product Description

The Anvil 0560009078 Fig 92 C-Clamp is made from ductile iron and is designed to secure components in construction and industrial applications. This clamp is suitable for attachment to the horizontal flanges of structural members in both top beam and bottom beam positions.

• Secured by a cup-pointed set screw for reliable holding.
• Includes a jam nut for tightening against the body casting.
• Compatible with Fig 89X retaining clip for seismic applications.

Product Highlights

This product is ideal for use under roof installations with bar-joist type construction or when offset attachment to the flange is necessary.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0560009078

Technical Specifications

• Material: Ductile Iron
• Finish: Plain
• Item Weight: 0.63 lbs
• Clamp Width: 1.06 in
• Clamp Length: 2.13 in
• Throat Depth: 3/4 in
• Load Capacity: 500 lbs
• Installation Torque: 125 in-lb
