Anvil 0500421102 Figure CT-121 4 in. Carbon Steel Riser Clamp in Copper Plated

Product Description

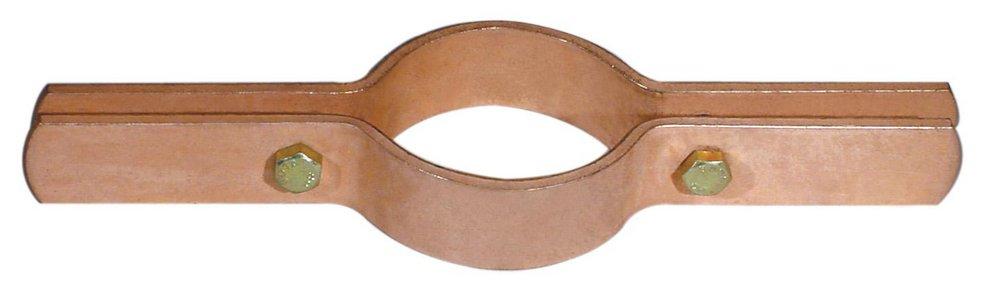

The Anvil 0500421102 is a two-piece riser clamp designed for supporting copper tubing. It accommodates a four-inch pipe size and delivers reliable performance in various applications. This product complies with federal specifications and industry standards.

• Complies with Federal Specification A-A-1192A (Type 8)
• Suitable for both insulated and non-insulated copper tubing
• Rounded ears enhance safety during use

Product Highlights

This riser clamp is ideal for steadying copper tube risers. It is built from carbon steel with a copper-plated finish.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500421102

Technical Specifications

• Pipe Size: 4 inches
• Overall Length: 13 inches
• Clamp Material: Carbon Steel
• Width: 1 inch
• Screw/Bolt Size: 1/2 inch
• Number of Screws/Bolts: 2
• Finish: Copper Plated
• Load Rating: 300 pounds
• Applicable Standards: Federal Specification A-A-1192A, WW-H-171-E, ANSI/MSS SP-69/58
• Torque Rating: 46 Foot-Pound
• Maximum Operating Temperature: 450 Degrees F
