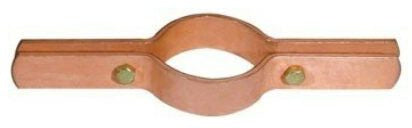

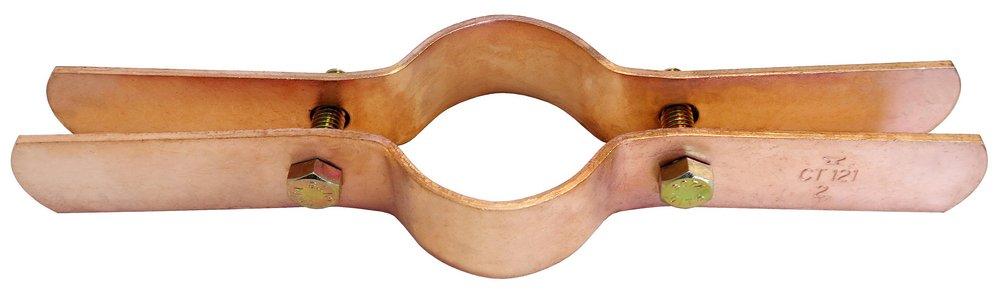

Anvil 0500421086 Figure CT-121 3 in. Carbon Steel Riser Clamp in Copper Plated

Product Description

The Anvil riser clamp with MPN 0500421086 is designed for supporting copper tubing risers. This clamp is suitable for both insulated and non-insulated applications. It features rounded ears, which help improve safety for personnel.

• Complies with important federal specifications for quality and safety.
• Designed for a pipe size of three inches.
• Load rating is 300 pounds, allowing for reliable support.

Product Highlights

This riser clamp promotes stability for copper tubing installations while adhering to relevant industry standards.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500421086

Technical Specifications

• Material: Carbon Steel
• Overall Length: eleven and one-half inches
• Width: one and one-quarter inches
• Screw/Bolt Size: three-eighths inches
• Number of Screws/Bolts: two
• Finish: Copper Plated
• Torque Rating: twenty-one foot-pounds
• Load Rating: three hundred pounds
• Applicable Standards: Federal Specification A-A-1192A Type 8, WW-H-171-E Type 8, ANSI/MSS SP-69/58 Type 8
• Maximum Operating Temperature: four hundred fifty degrees Fahrenheit
