Anvil 0500421078 Figure CT-121 2-1/2 in. Carbon Steel Riser Clamp in Copper Plated

Product Description

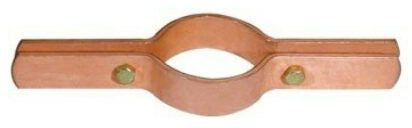

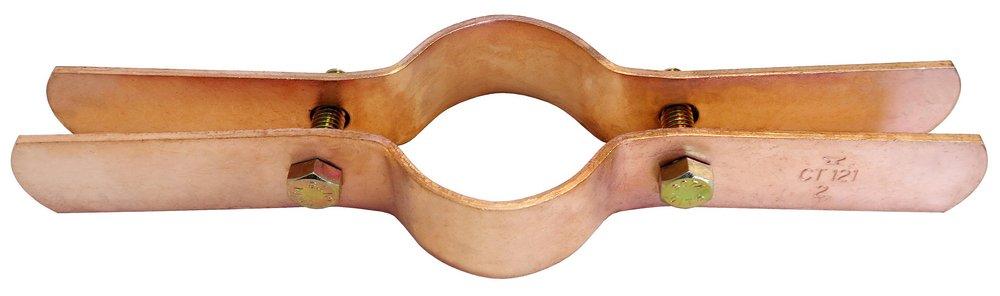

The Anvil Figure CT-121, MPN 0500421078, is designed for supporting and steadying copper tubing risers. This riser clamp is made from carbon steel and features a copper-plated finish. It is ideal for use in plumbing systems where secure support for copper pipes is necessary.

• Complies with Federal Specification A-A-1192A (Type 8).
• Rounded ears enhance safety for personnel.
• Load rating of three hundred pounds.

Product Highlights

This riser clamp is designed to support both insulated and non-insulated copper tubing risers.

Product Information

Standard Information

• Manufacturer: Anvil
• UPC: 690291148576

Technical Specifications

• Pipe Size: 2-1/2 inches
• Overall Length: 11-13/16 inches
• Clamp Width: 1-1/4 inches
• Screw/Bolt Size: 3/8 inches
• Number of Screws/Bolts: 2
• Finish: Copper Plated
• Load Rating: 300 pounds
• Torque Rating: 21 foot-pounds
• Application: Support and steadying of copper tubing risers
