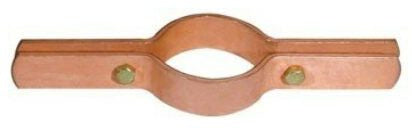

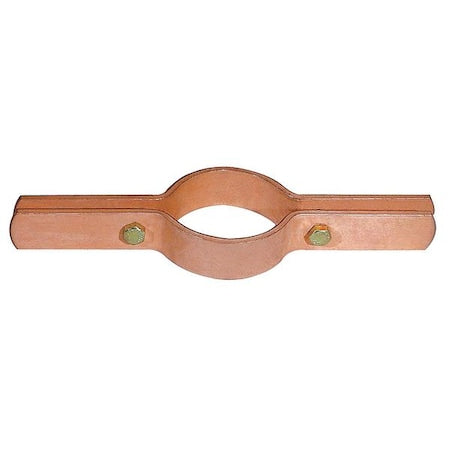

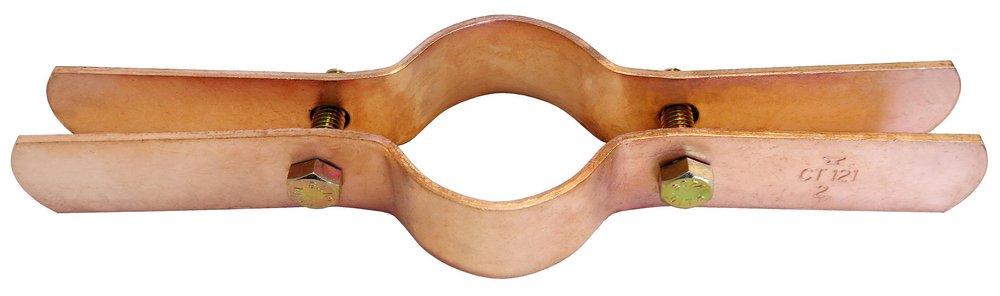

Anvil 0500421060 Figure CT-121 2 in. Carbon Steel Riser Clamp in Copper Plated

Product Description

The Anvil 0500421060 is a riser clamp designed for the support and steadying of copper tubing risers. It is suitable for both insulated and non-insulated applications. This clamp is constructed from carbon steel and finished with a copper plating for durability and corrosion resistance.

• Fits copper tubing sizes of two inches.
• Load rating of one hundred fifty pounds.
• Complies with necessary federal specifications.

Product Highlights

Rounded ears on the clamp enhance safety for personnel. This clamp is built to securely hold copper tubing, ensuring stable support during installation.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500421060

Technical Specifications

• Material: Carbon Steel
• Size: Two inches
• Overall Length: Ten and three-eighths inches
• Width: One and one-fourth inches
• Screw/Bolt Size: Three-eighths inches
• Load Rating: One hundred fifty pounds
• Torque Rating: Twenty-one foot-pounds
• Standards Met: Federal specification A-A-1192A, WW-H-171-E, ANSI/MSS SP-69, MSS SP-58
