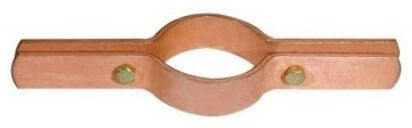

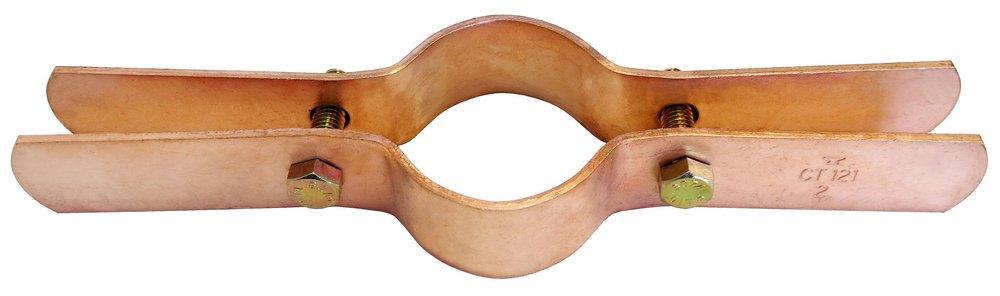

Anvil 0500421052 Figure CT-121 1-1/2 in. Copper Steel Riser Clamp

Product Description

The Anvil 0500421052 is a 1-1/2 inch copper-plated carbon steel riser clamp designed for supporting and steadying copper tubing risers, whether they are insulated or non-insulated. This clamp is compliant with federal specifications and ANSI standards, ensuring reliability in various applications.

• Supports insulated and non-insulated copper tubing risers
• Meets federal specifications A-A-1192A and others
• Rounded ears enhance safety during use

Product Highlights

This riser clamp provides stability and safety for copper tube installations.

Product Information

Standard Information

• Manufacturer: Anvil
• MPN: 0500421052

Technical Specifications

• Pipe Size: 1-1/2 inches
• Overall Length: 10 inches
• Clamp Material: Carbon steel
• Width: 1-1/4 inches
• Screw/Bolt Size: 3/8 inches
• Number of Screws/Bolts: 2
• Finish: Copper plated
• Load Rating: 150 pounds
• Torque Rating: 21 foot-pounds
• Applicable Standards: Federal Specification A-A-1192A, ANSI/MSS SP-69/58
