Anvil 0500421045 Figure CT-121 1-1/4 in. Carbon Steel Riser Clamp in Copper Plated

Product Description

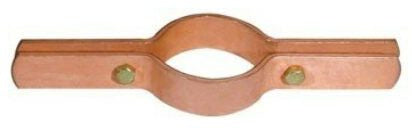

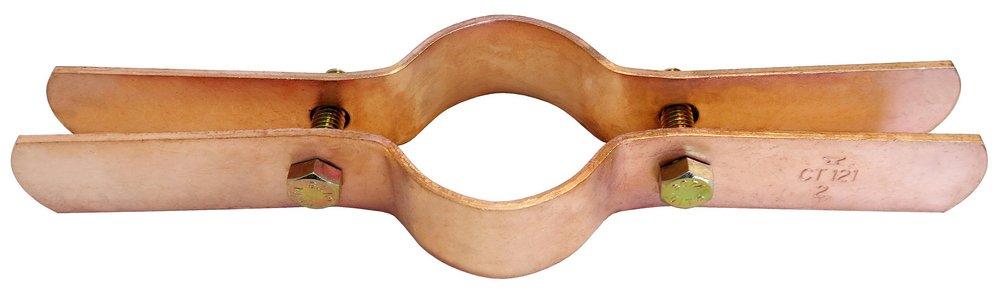

The Anvil 0500421045 is a carbon steel riser clamp specifically designed for supporting and steadying copper tube risers. This clamp is suitable for both insulated and non-insulated applications, making it versatile for different installation situations.

• Complies with Federal Specification A-A-1192A (Type 8) standards.
• Rounded ears for added safety during use.
• Load capacity rated at one hundred fifty pounds.

Product Highlights

Use this riser clamp to ensure stable and secure support for copper tubing installations, suitable for both commercial and residential projects.

Product Information

Standard Information

• Brand: Anvil
• Manufacturer Part Number: 0500421045

Technical Specifications

• Materials: Carbon Steel
• Clamp Size: 1-1/4 inches
• Overall Length: 9-5/8 inches
• Width: 1-1/4 inches
• Screw Size: 3/8 inches
• Number of Screws: 2
• Finish: Copper Plated
• Load Rating: 150 pounds
• Torque Rating: 21 foot-pounds
• Applicable Standards: ANSI/MSS SP-69, MSS SP-58
• Application: Support and steadying of copper tubing risers
