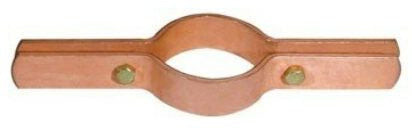

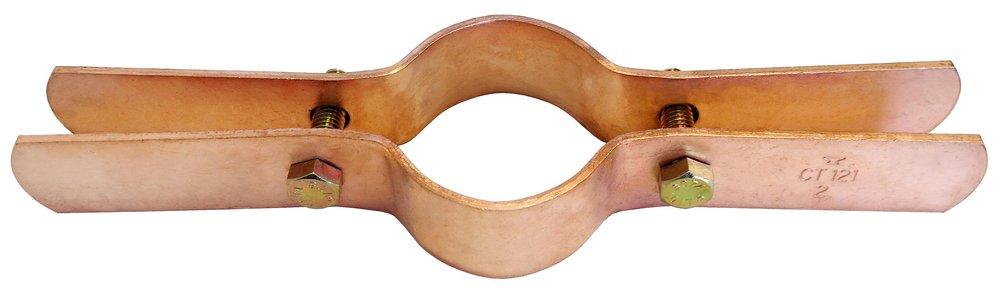

Anvil 0500421029 Figure CT-121 3/4 in. Copper-Plated Carbon Steel Riser Clamp

Product Description

The Anvil Figure CT-121 is a 3/4 inch carbon steel riser clamp with a copper-plated finish designed for supporting copper tube risers. It is suitable for both insulated and non-insulated applications, ensuring stability and safety. This clamp is compliant with various federal and ANSI standards, making it a reliable choice for plumbing and HVAC tasks.

• Supports copper tubing risers effectively.
• Complies with Federal and ANSI specifications.
• Features rounded ears for added safety during installation.

Product Highlights

This riser clamp is made from durable carbon steel and features a copper-plated finish, ideal for long-lasting performance in piping installations.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500421029

Technical Specifications

• Pipe Size: 3/4 inch
• Overall Length: 7 inches
• Width: 1 inch
• Screw/Bolt Size: 5/16 inch
• Number of Screws/Bolts: 2
• Load Rating: 75 pounds
• Torque Rating: 11 foot-pounds
• Applicable Standards: A-A-1192A, WW-H-171-E, ANSI/MSS SP-69, MSS SP-58
