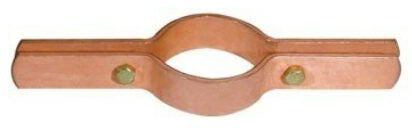

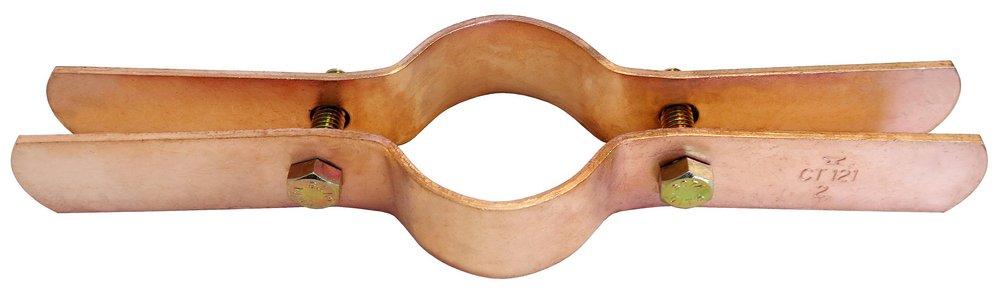

Anvil 0500421011 Figure CT-121 1/2 in. Carbon Steel Riser Clamp in Copper Plated

Product Description

The Anvil 0500421011 is a carbon steel riser clamp designed for support and steadying of copper tubing risers. This clamp is suitable for both insulated and non-insulated applications. It features a copper-plated finish for durability and corrosion resistance.

• Meets multiple federal specifications including A-A-1192A and ANSI/MSS standards.
• Supports a load rating of seventy-five pounds.
• Rounded ears enhance safety for personnel during installation.

Product Highlights

This riser clamp is a standard choice for HVAC and plumbing professionals. It is easy to install and provides reliable support for copper pipes.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500421011

Technical Specifications

• Material: Carbon Steel
• Pipe Size: 1/2 inch
• Overall Length: 6.5 inches
• Width: 1 inch
• Screw Size: 5/16 inch
• Number of Screws: 2
• Load Rating: 75 pounds
• Torque Rating: 11 foot-pounds
• Finish: Copper Plated
• Applicable Standards: Federal Specification A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 and MSS SP-58 (Type 8)
