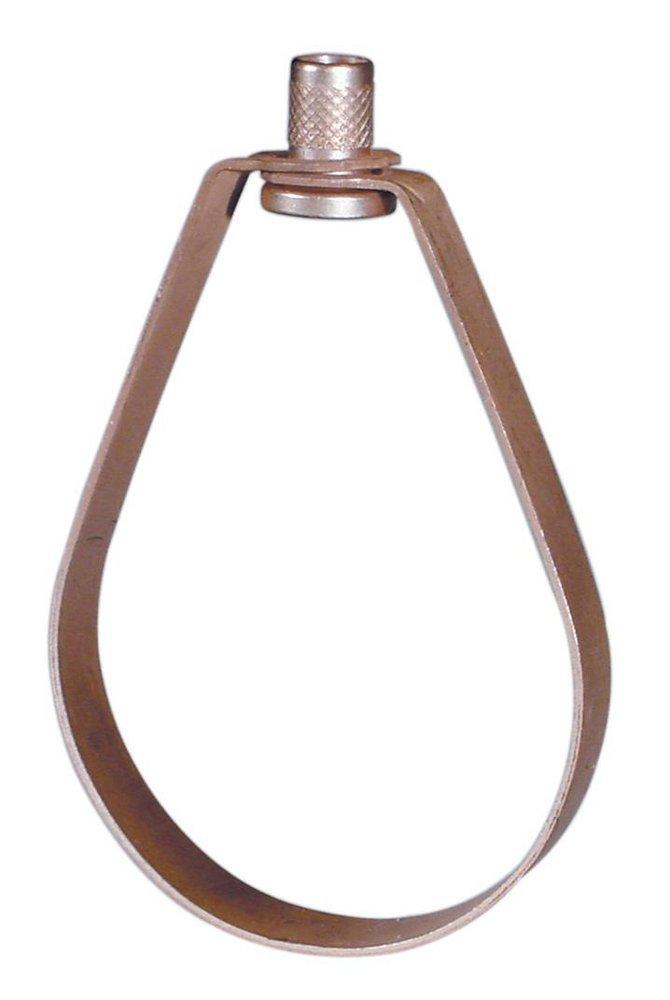

Anvil 0500406947 Fig CT-69 1-1/2 in. Copper Plated Carbon Steel Swivel Ring

Product Description

The Anvil 0500406947 is a Fig CT-69 swivel ring designed for pipe suspension. This hardware supports pipes with a maximum size of one and one-half inches. It features a copper-plated finish and is made of carbon steel for durability.

• Knurled swivel nut allows for easy vertical adjustments.
• Captured swivel nut ensures it stays in place during installation.
• Threads are countersunk to prevent damage.

Product Highlights

This product is designed for hanging non-insulated stationary copper tubes. It holds up to three hundred pounds, providing a reliable solution for various plumbing needs.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500406947

Technical Specifications

• Material: Carbon Steel
• Finish: Copper Plated
• Load Rating: 300 pounds
• Mounting Size: 3/8 inches
• Width: 5/8 inches
• Maximum Pipe Size: 1-1/2 inches
• Applicable Standards: Federal Specification A-A-1192A/WW-H-171-E, ANSI/MSS SP-69, MSS SP-58
