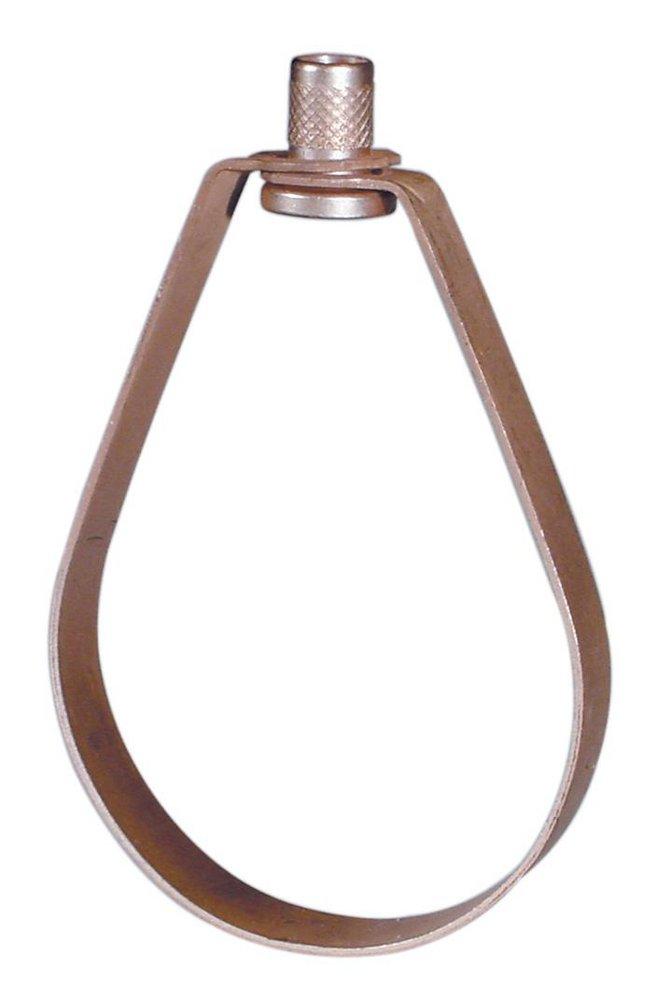

Anvil 0500406889 Fig CT-69 1/2 - 1-1/4 in. Copper Plated Carbon Steel Swivel Ring

Product Description

The Anvil 0500406889 is a Fig CT-69 adjustable swivel ring designed for hanging pipes with a size range from one half inch to one and one quarter inches. This model is made from carbon steel and comes with a copper plated finish, ensuring durability and resistance against corrosion.

• Adjustable swivel nut for proper alignment.
• Threads are countersunk to prevent damage.
• Rated load capacity of three hundred pounds.

Product Highlights

This item is suitable for suspension of non-insulated stationary copper tubes. It is easy to install and provides necessary adjustments post-installation.

Product Information

Standard Information

• Brand: Anvil
• Model: CT-69
• Type: Adjustable Swivel Ring Hanger

Technical Specifications

• Minimum Pipe Size: 1/2 inch
• Maximum Pipe Size: 1-1/4 inch
• Hanger Mounting Size: 3/8 inch
• Material: Carbon Steel
• Finish: Copper Plated
• Load Rating: 300 pounds
• Applicable Standards: Federal Specification A-A-1192A, WW-H-171-E, ANSI/MSS SP-69
• Width: 5/8 inch
• Application: Suspension of Non-Insulated Stationary Copper Tube
