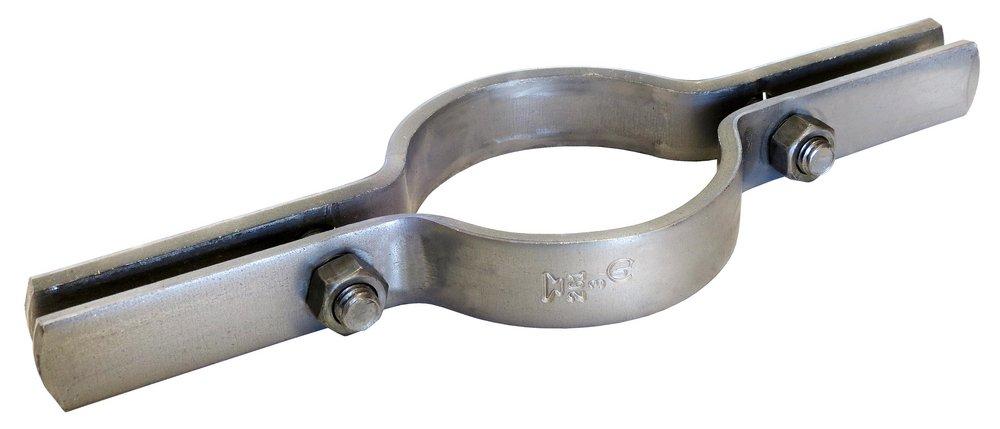

Anvil 0500361167 Fig 261 14 in. Carbon Steel Riser Clamp in Black

Product Description

The Anvil 0500361167 Fig 261 14 in. Carbon Steel Riser Clamp is designed for supporting stationary steel pipe risers and cast iron pipe or conduit. The clamp is suitable for standard steel pipe outer diameter. It is essential to consider this when sizing the riser for other pipe types.

• Supports a maximum temperature of plain 650 degrees Fahrenheit and galvanized or epoxy at 450 degrees Fahrenheit.
• Meets Federal Specification A-A-1192A and ANSI/MSS SP-69.
• UL and ULC listed for sizes ranging from one and a half inches to eight inches.

Product Highlights

This riser clamp is engineered for durability, ensuring reliable support in various plumbing applications.

Product Information

Standard Information

• Manufacturer: Anvil
• Part Number: 0500361167

Technical Specifications

• Maximum Temperature: Plain 650 degrees F, Galvanized/Epoxy 450 degrees F
• Approvals: Complies with A-A-1192A (Type 8), WW-H-171-E (Type 8), ANSI/MSS SP-69 and MSS SP-58 (Type 8)
• Pipe Sizes Supported: 1.5 inches to 8 inches
• Weight: 19.25 lbs
