Product Description

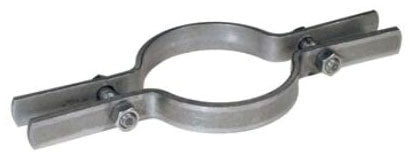

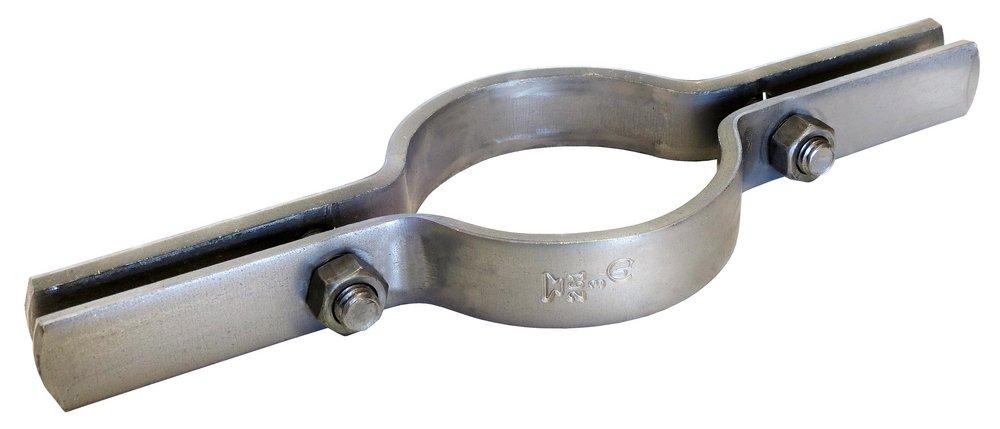

The Anvil 0500361159 Fig 261 is a carbon steel riser clamp designed for supporting stationary steel pipe risers and cast iron piping. It features a durable construction that meets various industry standards, making it suitable for HVAC, plumbing, or construction applications. This riser clamp has a maximum temperature rating of four hundred fifty degrees Fahrenheit for galvanized and epoxy-coated clamps. The clamp is built for standard steel pipe outer diameters, ensuring compatibility with typical piping systems.
- Maximum Temperature Rating: Four hundred fifty degrees Fahrenheit
- Load Rating: Two thousand seven hundred pounds
- Construction: Carbon Steel with hot dip galvanized finish
Product Highlights
This riser clamp ensures reliable support and compliance with federal specifications, making it an ideal choice for trade professionals.
Product Information
Standard Information
-
Brand: Anvil
-
MPN: 0500361159
Technical Specifications
-
Pipe Size: Twelve inches
-
Overall Length: Twenty-two and three-quarter inches
-
Width: Two inches
-
Screw/Bolt Size: Five eighths inch
-
Number of Screws/Bolts: Two
-
Torque Rating: One hundred foot-pounds
-
Applicable Standards: Federal Specification A-A-1192A Type 8, WW-H-171-E Type 8, ANSI/MSS SP-69/58 Type 8, UL (Canada and US)
