Product Description

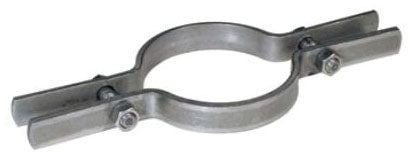

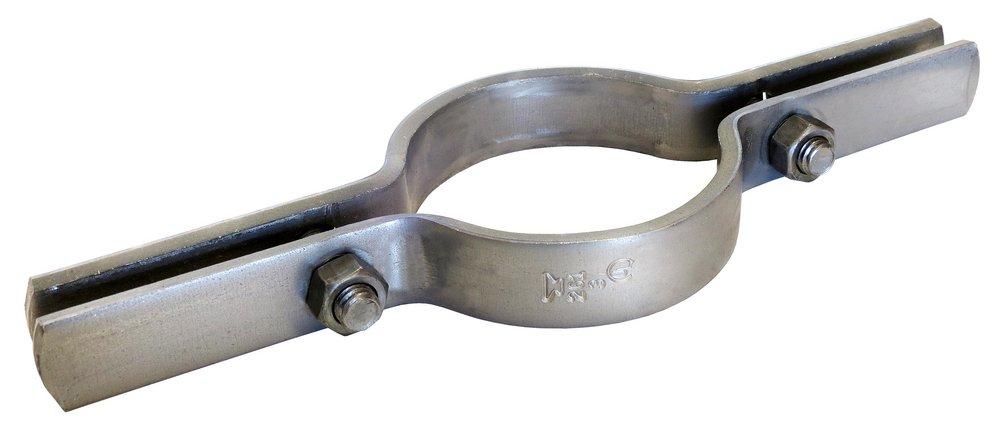

The Anvil Fig 261 10 in. Carbon Steel Riser Clamp, MPN 0500361142, is designed for the secure support of various piping systems. This clamp accommodates stationary steel pipe risers, cast iron pipes, and conduits.
- Optimized for a ten-inch pipe size
- Constructed from durable carbon steel
- Hot-dip galvanized finish for corrosion resistance
Product Highlights
The clamp features a two-piece assembly for easy installation and maintenance. It is rated for a load capacity of two thousand five hundred pounds and has a temperature rating up to four hundred fifty degrees Fahrenheit.
Product Information
Standard Information
-
Manufacturer: Anvil
-
MPN: 0500361142
Technical Specifications
-
Type: Extension Pipe/Riser Clamp
-
Pipe Size: 10 inches
-
Overall Length: 20.25 inches
-
Width: 2 inches
-
Screw/Bolt Size: 5/8 inches
-
Number of Screws/Bolts: 2
-
Load Rating: 2500 pounds
-
Temperature Rating: 450 degrees Fahrenheit
-
Applicable Standards: Federal Specification A-A-1192A, ANSI/MSS SP-69/58
-
Torque Rating: 100 foot-pounds
