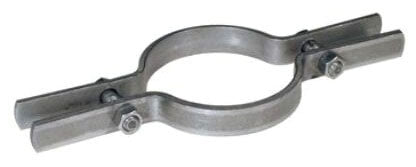

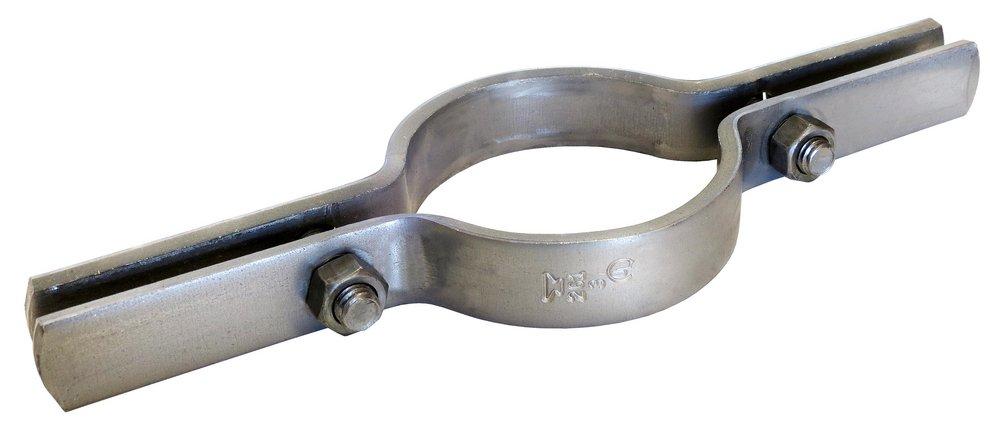

Anvil 0500361134 Fig 261 8 in. Carbon Steel Riser Clamp in Black

Product Description

The Anvil 0500361134 Fig 261 riser clamp supports stationary steel pipes, cast iron pipes, or conduits. Designed for eight inch pipes, it is made of carbon steel and features a hot dip galvanized finish. This clamp is suitable for various plumbing applications and is compliant with significant standards.

• Supports stationary steel and cast iron pipes.
• Compatible with eight inch pipe size.
• Maximum temperature rating of four hundred fifty degrees Fahrenheit.

Product Highlights

This clamp effectively secures pipes in place. It is made to withstand high temperatures and heavy loads.

Product Information

Standard Information

• Manufacturer: Anvil
• Part Number: 0500361134

Technical Specifications

• Pipe Size: 8 inches
• Overall Length: 18.5 inches
• Clamp Material: Carbon Steel
• Width: 1.5 inches
• Screw/Bolt Size: 5/8 inches
• Number of Screws/Bolts: 2
• Finish: Hot Dip Galvanized
• Load Rating: 2500 pounds
• Temperature Rating: 450 degrees Fahrenheit
• Torque Rating: 100 foot-pounds
• Approval Standards: ANSI/MSS SP-69, Federal Specification A-A-1192A Type 8, UL Listed
