Anvil 0500361100 Figure 261 4 in Hot Dip Galvanized Riser Clamp

Product Description

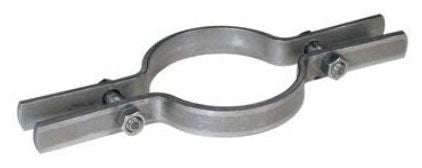

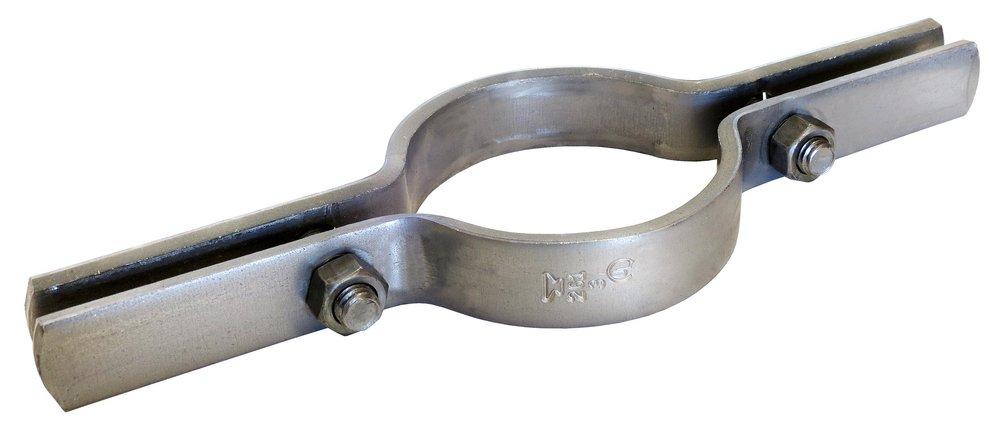

The Anvil 0500361100 is a riser clamp designed for securing pipes in various applications. This clamp fits a pipe size of four inches and features a durable hot dip galvanized finish. It is suitable for supporting stationary steel pipe risers and cast iron pipes.

• Extension pipe or riser clamp
• Two-piece construction
• Load rating of seven hundred fifty pounds

Product Highlights

This clamp provides reliable support for pipes and conduits in harsh environments.

Product Information

Standard Information

• Manufacturer: Anvil
• Model Number: 261

Technical Specifications

• Pipe Size: 4 inches
• Overall Length: 12.875 inches
• Clamp Material: Carbon Steel
• Width: 1 inch
• Screw/Bolt Size: 1/2 inch
• Number of Screws/Bolts: 2
• Finish: Hot Dip Galvanized
• Load Rating: 750 pounds
• Temperature Rating: 450 degrees Fahrenheit
• Applicable Standards: Federal Specification A-A-1192A Type 8, WW-H-171-E Type 8, ANSI/MSS SP-69/58 Type 8, UL (Canada and US)
• Torque Rating: 46 foot-pounds
• Application: Supports stationary steel pipe riser and cast iron pipe/conduit
