Product Description

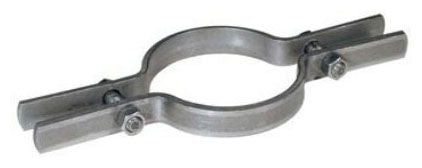

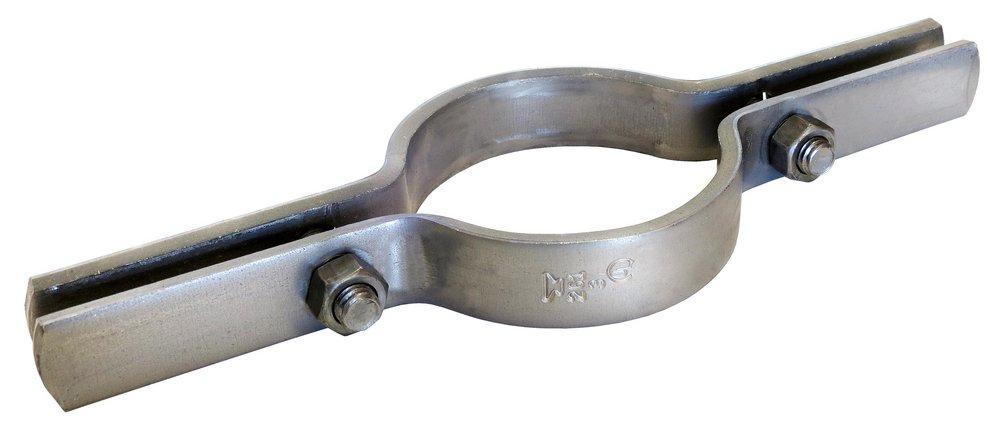

The Anvil 0500361068 Fig 261 is a riser clamp designed for supporting stationary steel pipe risers, cast iron pipes, or conduits. This riser clamp provides a reliable solution for keeping pipes in place under various conditions.
- Supports stationary steel pipe risers and conduits.
- Constructed from durable carbon steel.
- Designed to accommodate standard steel pipe outer diameters.
Product Highlights
This clamp is suitable for high-temperature applications, with a maximum temperature rating of six hundred fifty degrees Fahrenheit for plain and four hundred fifty degrees Fahrenheit for galvanized and epoxy finishes.
Product Information
Standard Information
-
Manufacturer: Anvil
-
Model Number: 261
-
Part Number: 0500361068
Technical Specifications
-
Pipe Size: 2 inches
-
Overall Length: 10.25 inches
-
Clamp Width: 1 inch
-
Screw/Bolt Size: 7/16 inches
-
Number of Screws/Bolts: 2
-
Load Rating: 300 pounds
-
Torque Rating: 32 foot-pounds
-
Applicable Standards: Complies with Federal Specification A-A-1192A, WW-H-171-E, ANSI/MSS SP-69 and SP-58. UL and ULC Listed (Sizes 1.5 to 8 inches).
