Anvil 0500360144 Fig 260 Adjustable Clevis Hanger 10 Inch

Product Description

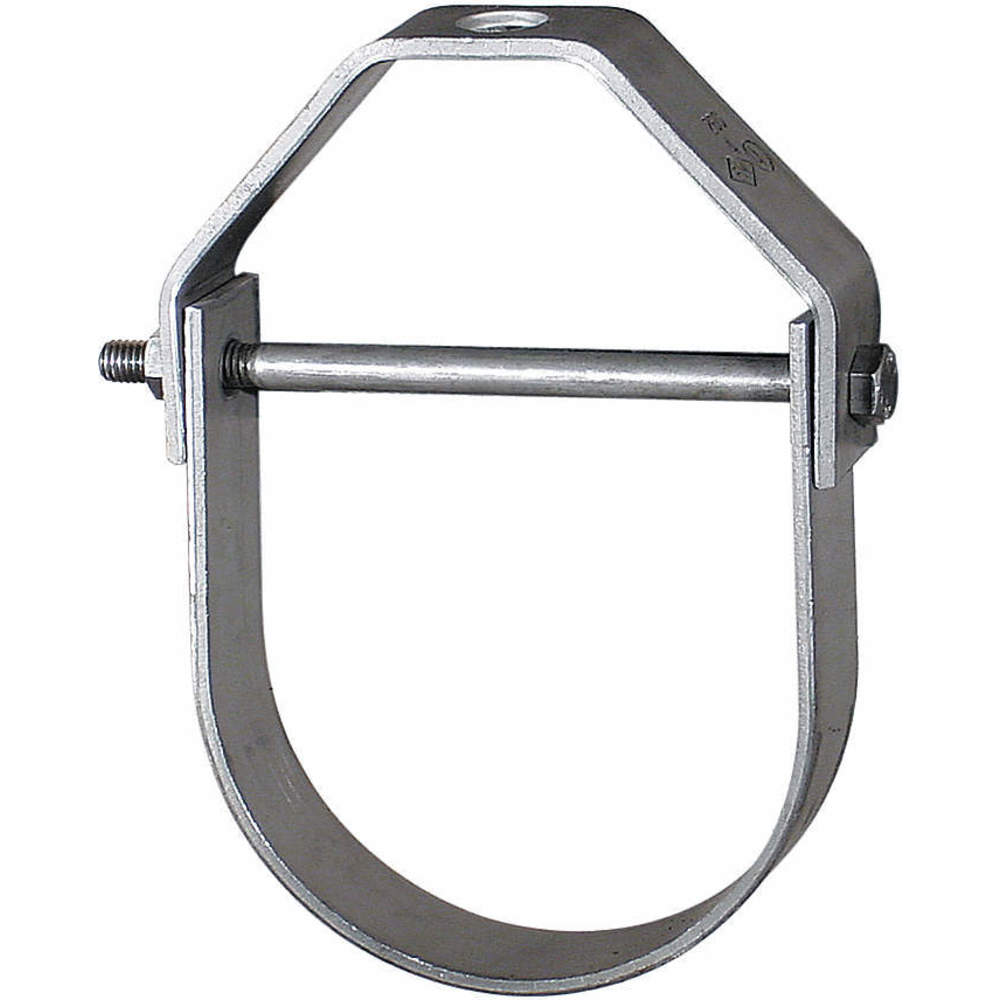

The ANVIL 0500360144 is an Adjustable Clevis Hanger, Series FIG 260, designed for the suspension of stationary pipe lines. It is constructed from carbon steel with a hot dip galvanized/zinc plated finish, suitable for 10-inch pipes. This hanger has a load capacity of 3600 pounds and can withstand temperatures up to 450 degrees Fahrenheit. Its design includes a 7/8 inch rod size and an overall height of 15-1/4 inches.

• Features a yoke on the outside of the lower U-strap to minimize bolt bending.
• Thread length on the clevis rod locks nuts in place, ensuring threads are not in the shear plane.
• Offers vertical adjustment capabilities, varying from 3/8 inch to 5-1/8 inch depending on clevis size.

Product Highlights

This adjustable clevis hanger provides secure pipe suspension for 10-inch pipes, featuring a high 3600 pound load capacity and corrosion-resistant galvanized finish.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0500360144
• Country of Origin: US

Technical Specifications

• Brand: ANVIL
• MPN: 0500360144
• Type: Adjustable Clevis, Rod Mount
• Series: FIG 260
• Pipe Size: 10 Inch
• Rod Size: 7/8 Inch
• Material: Carbon Steel
• Finish: Hot Dip Galvanized/Zinc Plated
• Load Capacity: 3600 Pound
• Max Temperature: 450 Deg F
• Applicable Standard: ANSI/MSS SP-69, Federal Specification A-A-1192A/WW-H-171-E, MSS SP-58, UL (Canada and US), ULC, FM
• Rod Take Out Size: 8-7/16 Inch
• Adjustment: 2-1/8 Inch
• Application: Suspension of Stationary Pipe Line
• UPC: 690291146459
• Cushioned: No
