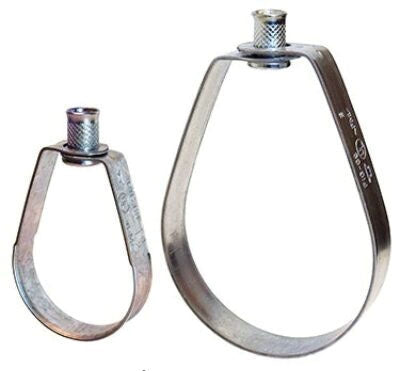

Anvil 0500301882 Pipe Hanger 8 Inch Pre-Galvanized Zinc

Product Description

Anvil manufactures the 0500301882 Pipe Hanger for the secure suspension of non-insulated stationary pipe lines. This hanger supports pipe sizes up to eight inches and features a durable design suited for various piping materials.

• Supports pipes with a minimum diameter of eight inches
• Adjustable design with a swivel ring for easy installation
• Made from carbon steel with a pre-galvanized zinc finish

Product Highlights

This pipe hanger features a load rating of up to one thousand pounds, making it suitable for heavy-duty applications. Its design allows for easy adjustments to accommodate different installation needs.

Product Information

Standard Information

• Manufacturer: Anvil
• UPC: 69029114391

Technical Specifications

• Pipe Size: 8 inches
• Hanger Mounting Size: 1/2 inch rod
• Material: Carbon steel
• Load Rating: 1000 pounds
• Temperature Rating: 450 degrees F
• Lower U-Strap Width: 3/4 inch
• Applicable Standards: ANSI/MSS SP-58, Federal Specification A-A-1192A/WW-H-171-E, NFPA, UL (Canada and US), FM
