Anvil 0500301841 Pipe Hanger 6 ea

Product Description

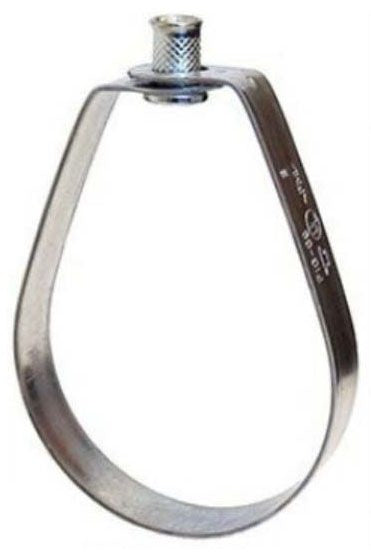

The Anvil 0500301841 pipe hanger is a reliable solution for supporting piping systems. This hanger is designed for use with a six-inch pipe size and features an adjustable swivel ring and rod mount for easy installation. Constructed from carbon steel, the hanger is pre-galvanized for enhanced durability.

• Load rating of one thousand pounds
• Temperature rating of four hundred fifty degrees Fahrenheit
• Meets multiple industry standards including ANSI/MSS SP-58 and NFPA

Product Highlights

This pipe hanger is intended for the suspension of non-insulated stationary pipe lines.

Product Information

Standard Information

• Manufacturer: Anvil
• Model Number: 69

Technical Specifications

• Pipe Size: Six inches
• Hanger Mounting Size: one half inch
• Material: Carbon steel
• Finish: Pre-galvanized zinc (strap), zinc plated (nut)
• Load Rating: One thousand pounds
• Temperature Rating: Four hundred fifty degrees Fahrenheit
• Applicable Standard: ANSI/MSS SP-58, Federal Specification A-A-1192A/WW-H-171-E, NFPA, UL (Canada and US), FM
• Width: three fourths inches
• Application: Suspension of non-insulated stationary pipe lines
