ANVIL Anvil 0500301809 4 #69 E-Z Grip Hanger (4 in)
ANVIL Anvil 0500301809 4 #69 E-Z Grip Hanger (4 in)

Anvil 0500301809 4 #69 E-Z Grip Hanger (4 in)

Brand: ANVIL
SKU: 0500301809
Availability: In Stock

Ships same day if ordered by 12 pm
$17.40
$17.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

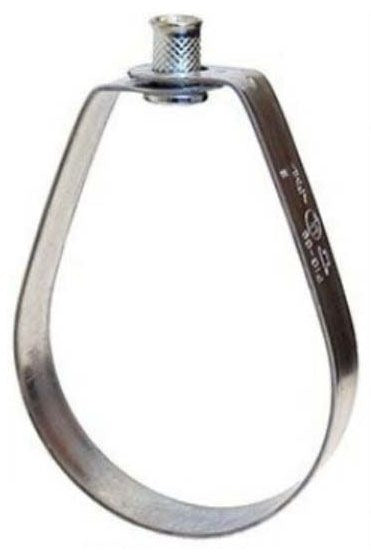

Anvil 0500301809 is a 4 #69 E-Z Grip hanger configured as an adjustable swivel ring for suspension of non-insulated stationary pipe lines. The hanger is constructed of carbon steel with a pre-galvanized zinc strap and a zinc-plated nut, and includes a knurled swivel nut for vertical adjustment. It meets multiple federal and industry standards and is intended for use with 4-inch pipe and a 3/8-inch hanger mount.

  • Carbon steel construction with pre-galvanized zinc strap and zinc-plated nut; intended for non-insulated stationary pipe suspension
  • Adjustable swivel ring design with countersunk threads and knurled swivel nut; captured swivel nut on select sizes
  • Meets Federal Specification A-A-1192A, WW-H-171-E, ANSI/MSS SP-69, MSS SP-58; UL listed and FM approved for specified sizes

Product Highlights

Adjustable swivel ring hanger for 4-inch non-insulated pipe with pre-galvanized strap

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0500301809
Technical Specifications
Brand
ANVIL
MPN
0500301809
Product Name
4 #69 E-Z Grip Hanger
Type
Adjustable swivel ring hanger
Material
Carbon steel
Finish
Strap pre-galvanized zinc; nut zinc plated
Application
Suspension of non-insulated stationary pipe line
Minimum Pipe Size
4 inch
Maximum Pipe Size
4 inch
Hanger Mounting Size
3/8 inch
Width
3/4 inch
Load Rating
650 pound
Maximum Temperature
650 F
Approvals
Complies with Federal Specification A-A-1192A (Type 10); WW-H-171-E (Type 10); ANSI/MSS SP-69 and MSS SP-58 (Type 10); UL listed and FM approved (sizes 3/4" - 8")
Mounting Type
Rod mount
Feature Notes
Threads countersunk to prevent burrs; knurled swivel nut provides vertical adjustment; captured swivel nut on 1/2" through 6" sizes
