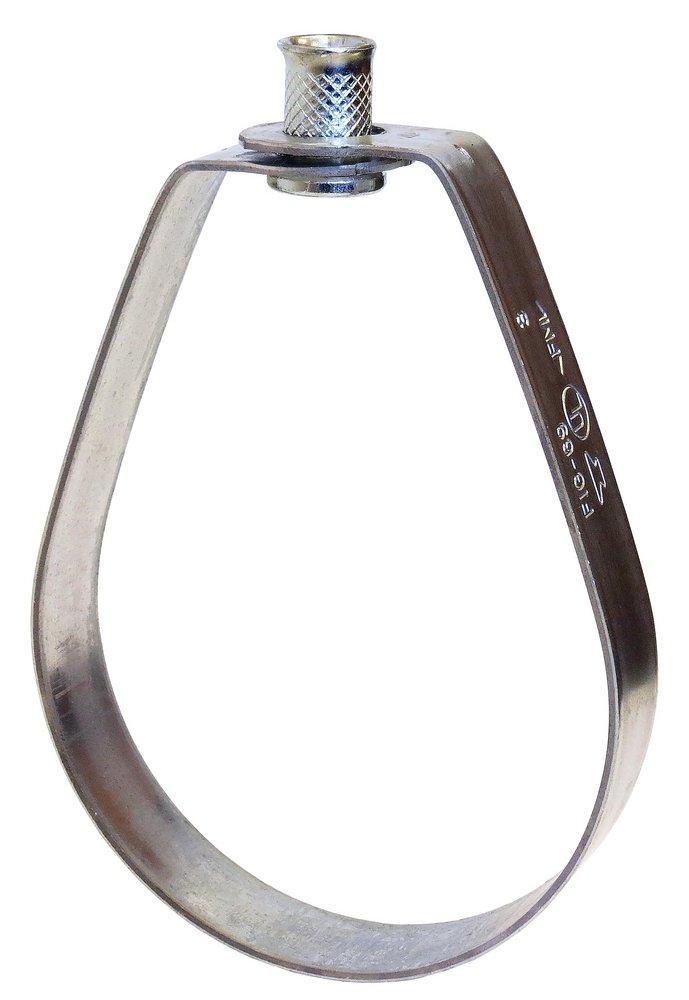

Anvil 0500301775 Fig 69 3 x 3/8 in. Pre-Galvanized and Zinc Plated Carbon Steel Swivel Ring Hanger

Product Description

The Anvil 0500301775 is a swivel ring hanger made from pre-galvanized and zinc-plated carbon steel designed for pipe support. This hanger accommodates pipe sizes of three inches, perfect for non-insulated stationary pipelines. It features a custom fit swivel nut that ensures better retention within the ring.

• Manufactured to comply with NFPA standards
• Easy pipe insertion due to the offset band edge
• Reliable load rating of 525 pounds

Product Highlights

This product allows for effective suspension of pipes while providing vertical adjustment after installation.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500301775

Technical Specifications

• Type: Adjustable Swivel Ring
• Pipe Size: 3 inches
• Material: Carbon Steel
• Finish: Pre-Galvanized Zinc (Strap), Zinc Plated (Nut)
• Load Rating: 525 pounds
• Temperature Rating: 450 degrees Fahrenheit
• Width: 3/4 inch
• Standards: ANSI/MSS SP-58, Federal Specification A-A-1192A, NFPA
