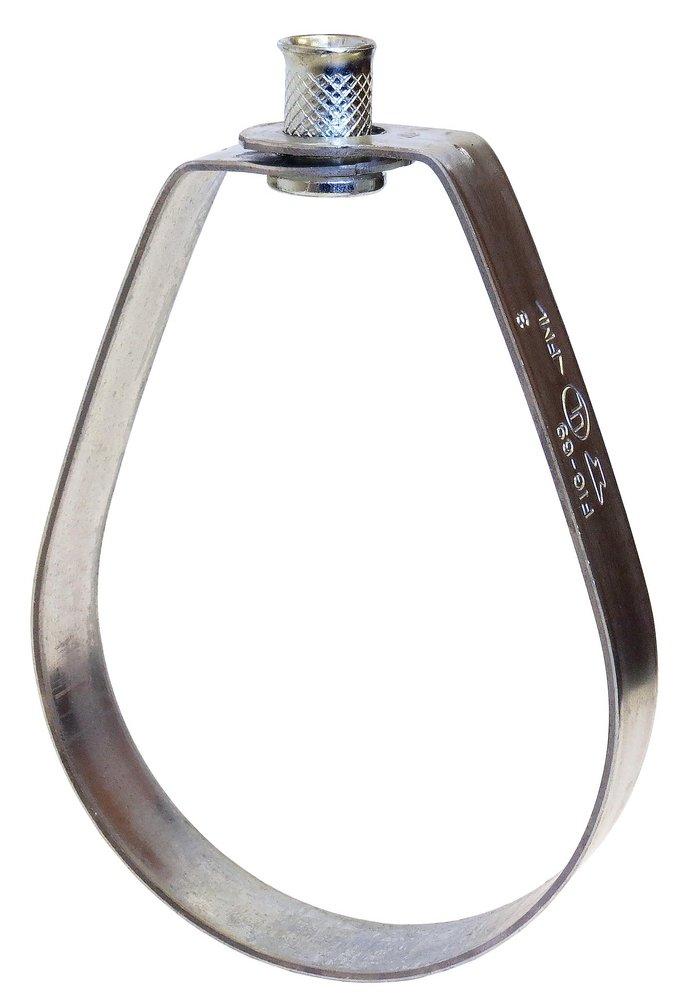

Anvil 0500301767 Fig 69 2-1/2 x 3/8 in. Pre-Galvanized and Zinc Plated Carbon Steel Swivel Ring Hanger

Product Description

The Anvil 0500301767 is a swivel ring hanger designed for the suspension of non-insulated stationary pipeline. This hanger is made from carbon steel with a pre-galvanized zinc finish. The swivel design allows for easy adjustments post-installation, ensuring a secure fit. It is suitable for a minimum and maximum pipe size of two and a half inches.

• Adjustable design for versatile use
• Load rating of five hundred twenty-five pounds
• Temperature rating up to four hundred fifty degrees Fahrenheit

Product Highlights

This hanger is easy to install and designed to meet industry standards, including NFPA. It features a captured swivel nut for improved stability and easy vertical adjustment after installation.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500301767

Technical Specifications

• Type: Adjustable, Swivel Ring
• Minimum Pipe Size: 2-1/2 inches
• Maximum Pipe Size: 2-1/2 inches
• Hanger Mounting Size: 3/8-inch Rod
• Material: Carbon Steel
• Finish: Pre-Galvanized Zinc (Strap), Zinc Plated (Nut)
• Load Rating: 525 pounds
• Temperature Rating: 450 degrees Fahrenheit
• Applicable Standards: ANSI/MSS SP-58, NFPA, UL (Canada and US)
• Lower U-Strap Width: 3/4 inches
• Application: Suspension of Non-Insulated Stationary Pipe Line
