Anvil 0500301742 Fig 69 1-1/2 x 3/8 in Adjustable Swivel Ring Hanger

Product Description

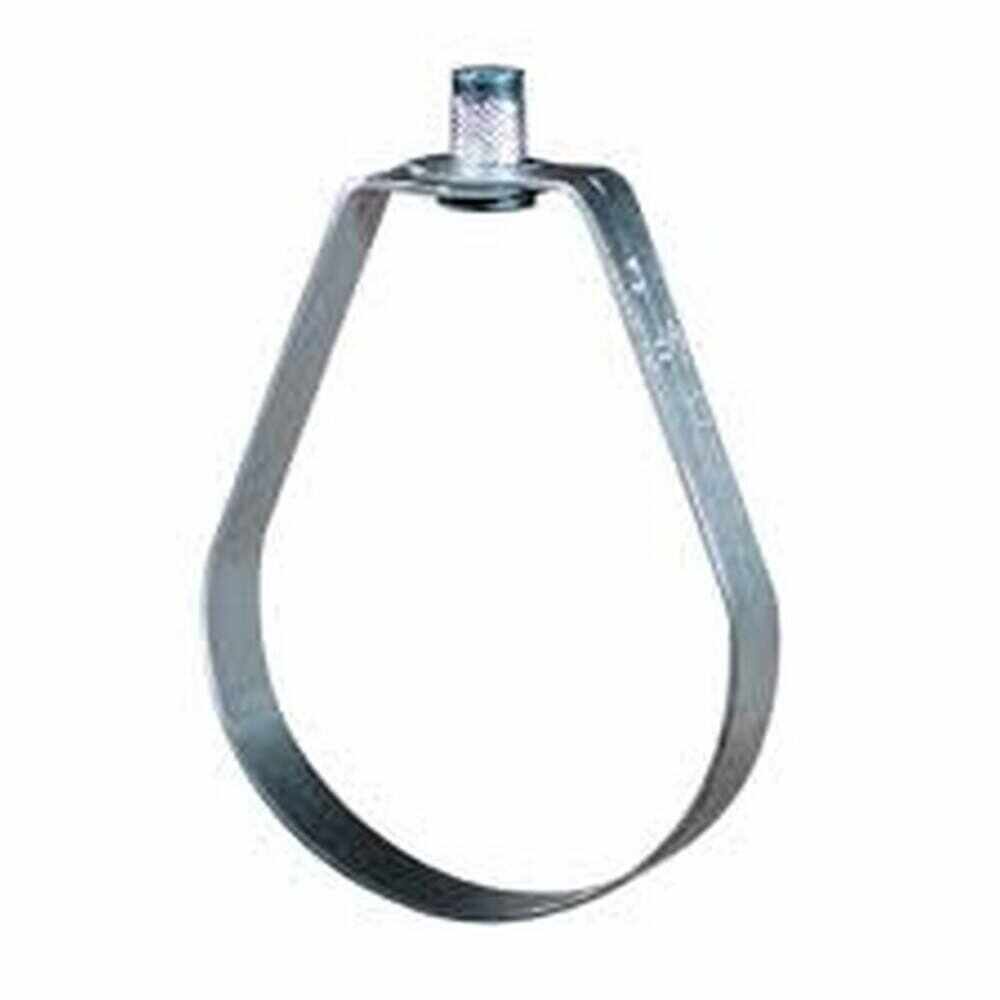

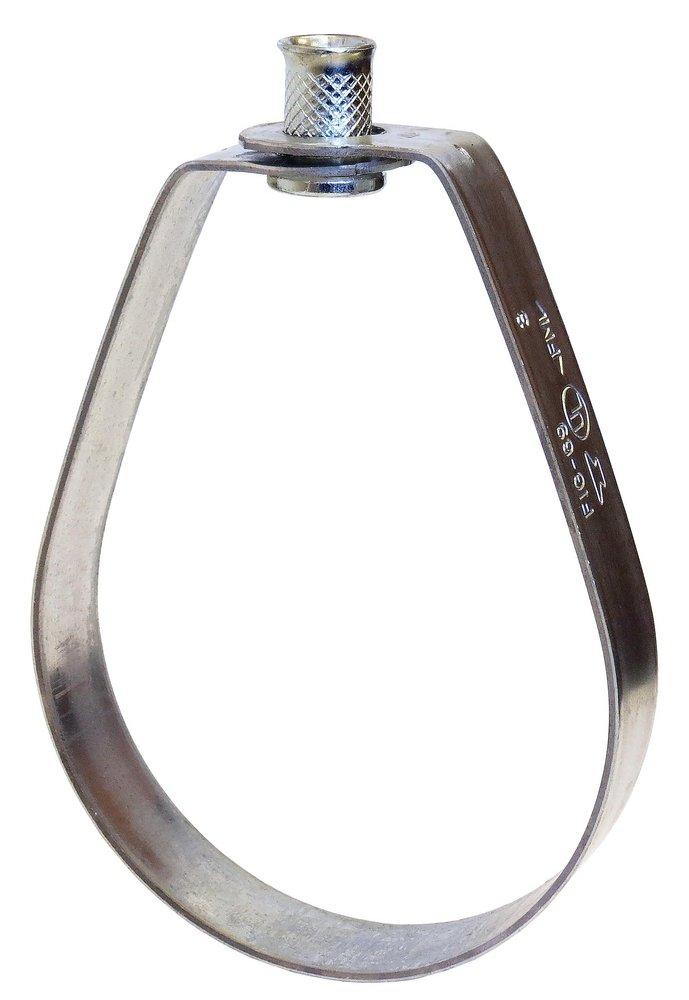

The Anvil 0500301742 Fig 69 is a swivel ring hanger designed for pipes with a size of one and one-half inches. Made from pre-galvanized carbon steel, this hanger is suitable for suspending non-insulated stationary pipe lines. It features a knurled swivel nut for easy vertical adjustment after installation. Compliance with NFPA standards ensures safety and reliability.

• Designed for pipes up to one and one-half inches in size.
• Suitable for a maximum load of 300 pounds.
• Pre-galvanized carbon steel construction enhances durability.

Product Highlights

This adjustable swivel ring hanger provides a secure and effective solution for pipe suspension. Designed for ease of installation, it simplifies the alignment and leveling process for piping projects.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500301742

Technical Specifications

• Material: Carbon steel
• Finish: Pre-galvanized zinc
• Temperature Rating: Up to 650 degrees Fahrenheit
• Load Rating: 300 pounds
• Applicable Standards: ANSI/MSS SP-58, NFPA
• Width: 5/8 inches
• Hanger Type: Adjustable swivel ring
• Rod Size: 3/8 inches
