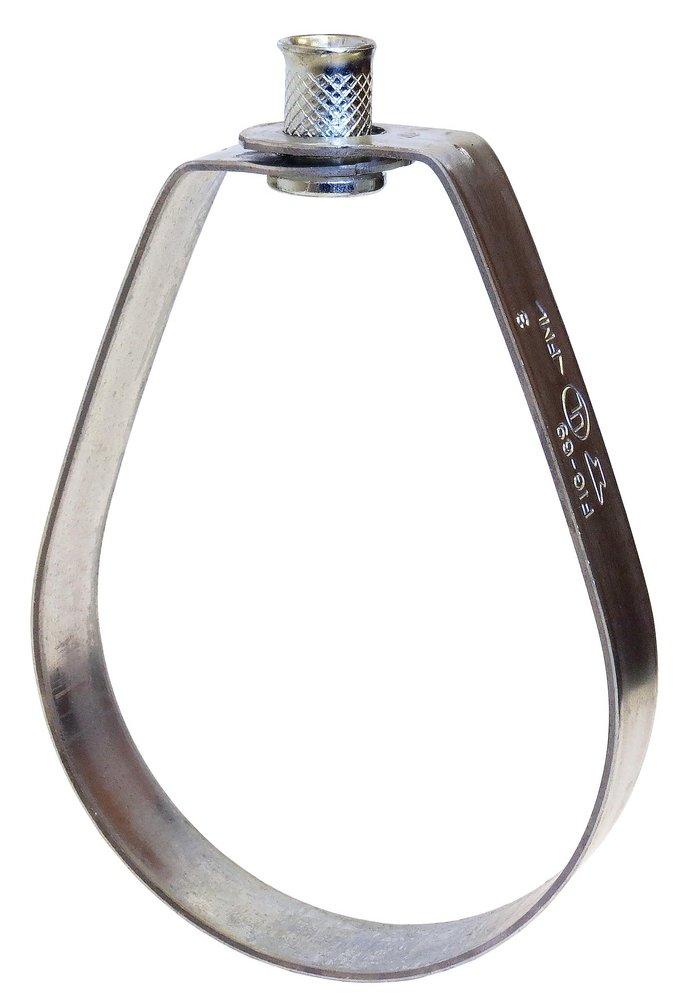

Anvil 0500301734 Fig 69 1-1/4 x 3/8 in. Pre-Galvanized and Zinc Plated Carbon Steel Swivel Ring Hanger

Product Description

The Anvil 0500301734 is a Fig 69 swivel ring hanger designed for use with one and one-quarter inch pipes. It is made from carbon steel and finished with pre-galvanized zinc for durability. This hanger is suitable for the suspension of non-insulated pipelines. The knurled swivel nut allows for vertical adjustments post-installation to ensure a secure pipe fit.

• Designed for pipe sizes of one and one-quarter inches
• Load rating of three hundred pounds
• Temperature rating up to four hundred fifty degrees Fahrenheit

Product Highlights

This adjustable swivel ring hanger ensures reliable support for piping systems, focusing on safety and compliance with industry standards.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500301734

Technical Specifications

• Material: Carbon steel
• Finish: Pre-galvanized zinc and zinc plated
• Load Rating: Three hundred pounds
• Temperature Rating: Four hundred fifty degrees Fahrenheit
• Size: One and one-quarter inches
• Hanger Mounting Size: Three-eighth inches
• Applicable Standards: ANSI/MSS SP-58, UL, FM
• Width: Five-eighth inches
