Anvil 0500301692 Fig 69 1/2 - 1 x 3/8 in. Pre-Galvanized and Zinc Plated Carbon Steel Swivel Ring Hanger

Product Description

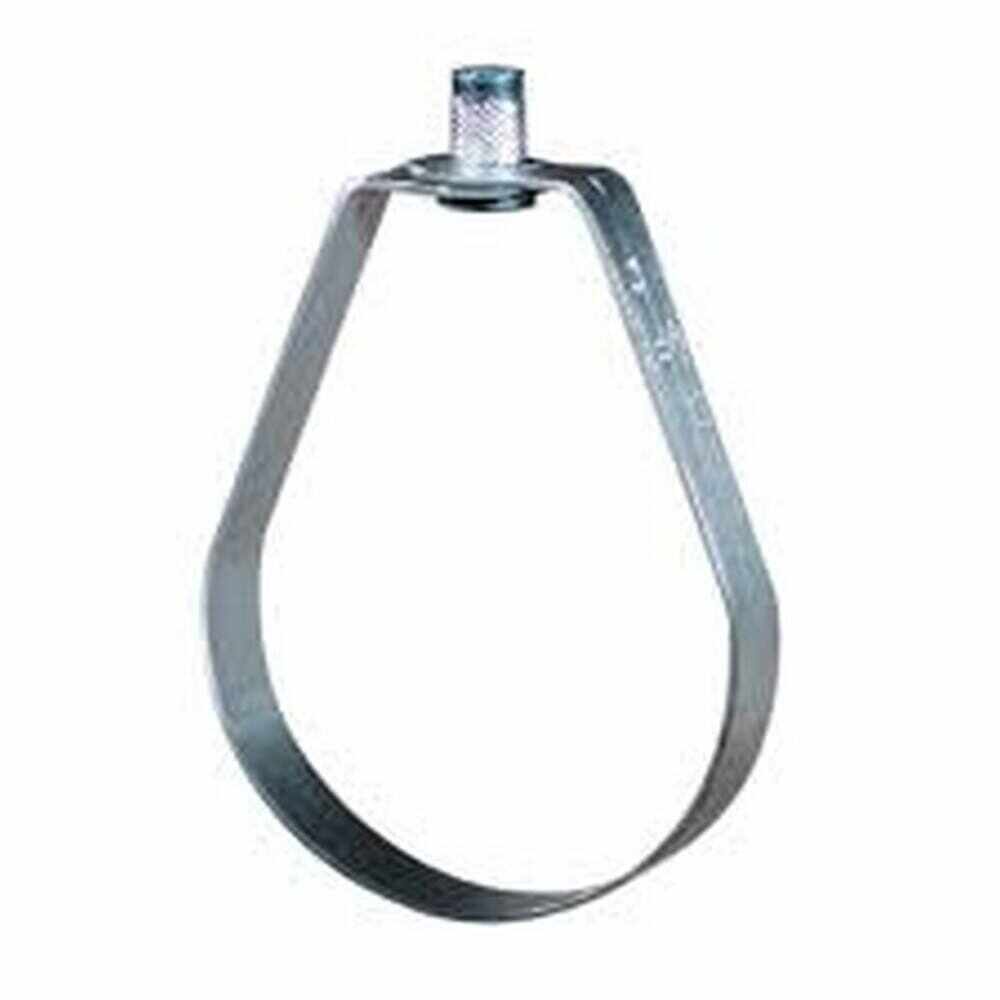

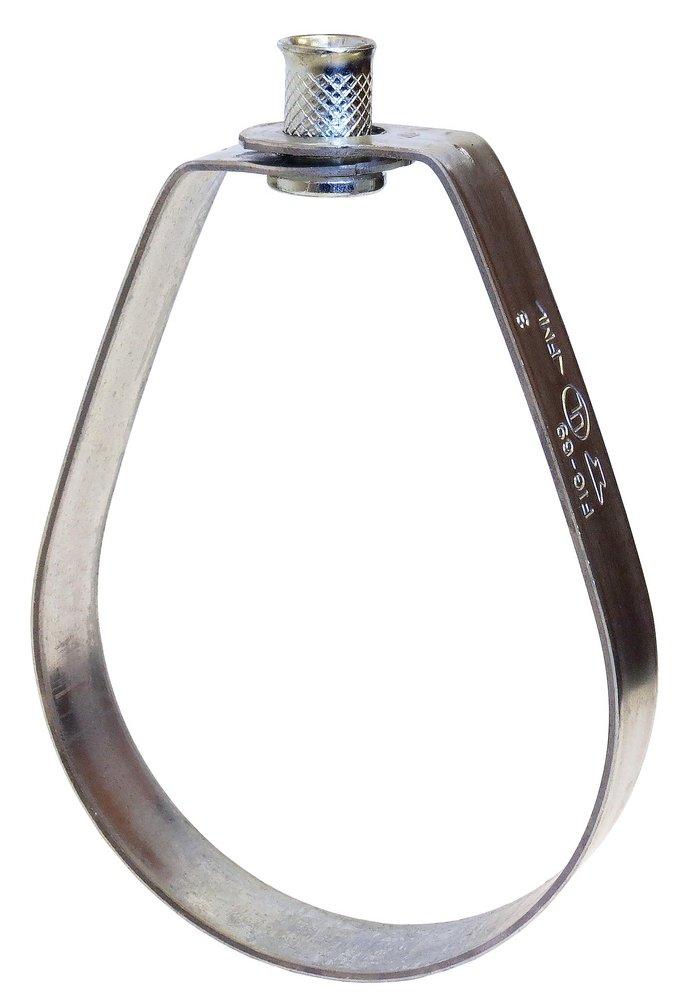

The Anvil swivel ring hanger, model 0500301692, is designed for suspending non-insulated stationary pipes. This adjustable swivel ring hanger fits pipes ranging from one half to one inch in diameter. Built from carbon steel with a pre-galvanized zinc finish, it ensures durability and resistance against corrosion. The hanger is equipped with a captive swivel nut that allows for vertical adjustment once the pipe is installed.

• Compatible with NFPA standards for fire protection.
• Suitable for installation with three eighth inch threaded rods.
• Load capacity of up to 300 pounds.

Product Highlights

This hanger facilitates easy installation and adjustment, providing a secure fit for various pipe sizes.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500301692

Technical Specifications

• Material: Carbon Steel
• Finish: Pre-Galvanized Zinc
• Minimum Pipe Size: 1/2 Inch
• Maximum Pipe Size: 1 Inch
• Hanger Mounting Size: 3/8 Inch Rod
• Load Rating: 300 Pounds
• Temperature Rating: 450 Degrees Fahrenheit
• Applicable Standards: ANSI/MSS SP-58, Federal Specification A-A-1192A
• Width: 5/8 Inch
• Application: Suspension of Non-Insulated Stationary Pipe Line
