Anvil 0500173653 Fig 261 12 in. Carbon Steel Riser Clamp in Black

Product Description

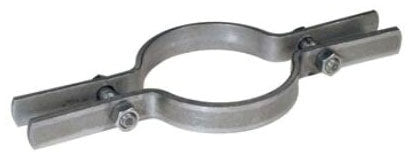

The Anvil Fig 261 riser clamp, MPN 0500173653, is designed for supporting stationary steel pipe risers and cast iron pipes. This clamp is made from carbon steel and features a plain black finish. It is suitable for use with standard steel pipe outer diameters.

• Maximum Temperature: Plain 650 degrees F, Galvanized and Epoxy 450 degrees F.
• Load Rating: Can support up to 2700 pounds.
• Easy installation with a two-piece design.

Product Highlights

This riser clamp simplifies the installation and support of pipe systems, ensuring safety and durability under various conditions.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500173653

Technical Specifications

• Pipe Size: 12 inches
• Overall Length: 22-3/4 inches
• Clamp Material: Carbon Steel
• Width: 2 inches
• Screw/Bolt Size: 5/8 inches
• Number of Screw/Bolts: 2
• Finish: Plain/Black
• Torque Rating: 100 Foot-Pound
• Applicable Standard: Federal Specification A-A-1192A Type 8, WW-H-171-E Type 8, ANSI/MSS SP-69/58 Type 8, UL (Canada and US)
