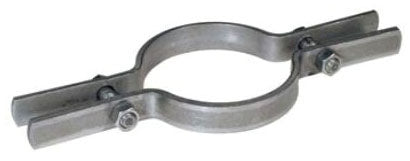

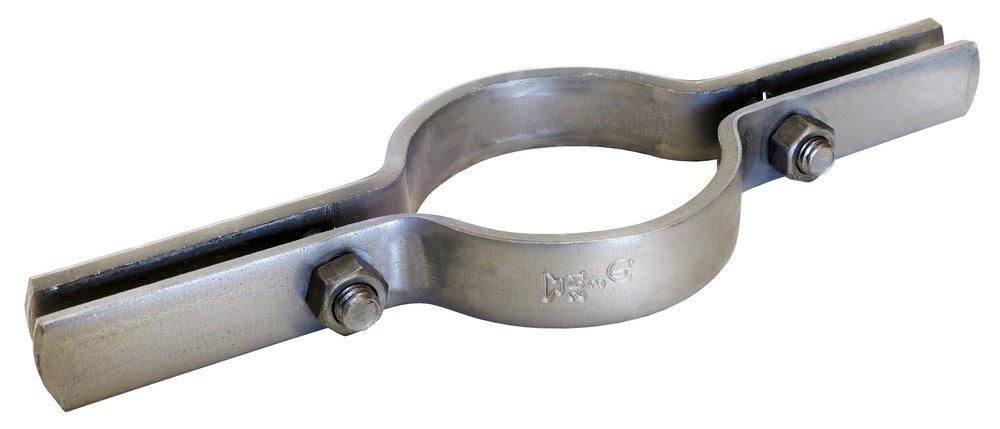

Anvil 0500173646 Fig 261 10 In. Carbon Steel Riser Clamp In Black

Product Description

The Anvil Fig 261 10 In. Carbon Steel Riser Clamp with MPN 0500173646 is designed for the support of stationary steel pipe risers, cast iron pipe, or conduit. This product meets various industry standards, ensuring reliability in its application.

• Max Temperature: Plain 650 degrees F, Galvanized and Epoxy 450 degrees F
• Load rating of two thousand five hundred pounds
• Designed for standard steel pipe O.D.

Product Highlights

This riser clamp supports maximum load and temperature ratings suitable for demanding environments.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500173646

Technical Specifications

• Type: 2-Piece
• Pipe Size: 10 In.
• Overall Length: 20-1/4 In.
• Clamp Material: Carbon Steel
• Width: 2 In.
• Screw/Bolt Size: 5/8 In.
• Number of Screws/Bolts: 2
• Finish: Plain/Black
• Torque Rating: 100 Foot-Pound
• Applicable Standards: Complies with Federal Specification A-A-1192A Type 8, WW-H-171-E Type 8, ANSI/MSS SP-69/58 Type 8, UL
